Product Details:
|
Features: | High Penetration Rate, High Speed,High Performance | Material: | Diamond |
---|---|---|---|
Type: | Rod Shoe ,Rod Shoe Bit | Use: | Mineral Exploration,Mineral Exploration |
Product Name: | Core Drill Bits | Crown Height: | 9mm, 12mm, And 16mm |
Highlight: | core hole drill bits,diamond core drill bit |

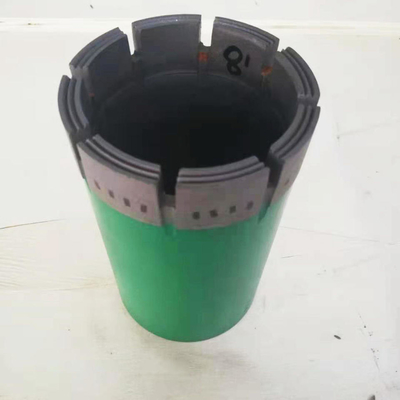

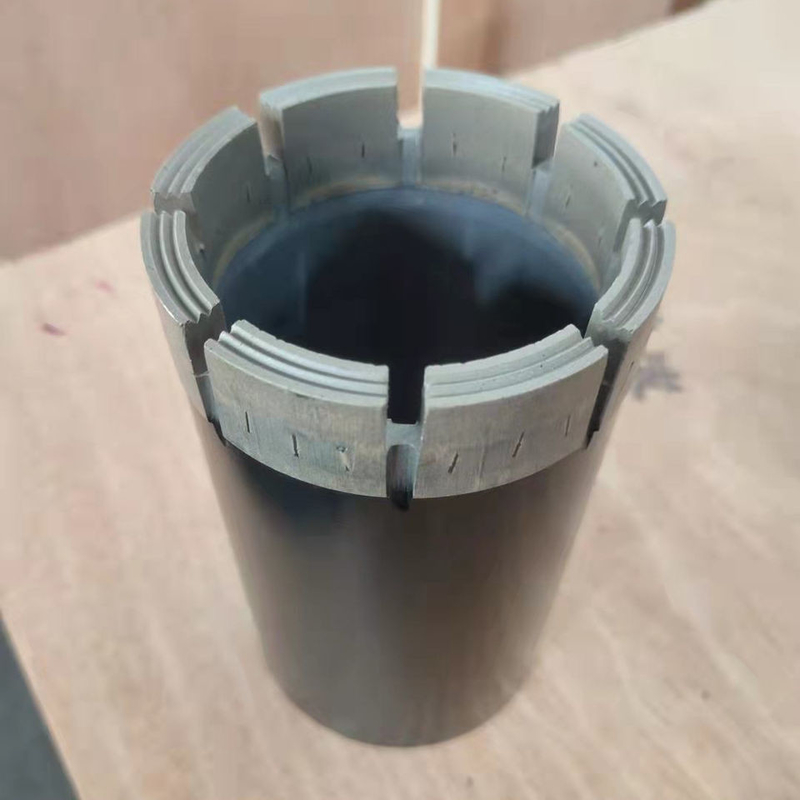

High Penetration Diamond Rod Shoe , BQ NQ HQ PQ Impregnated Rod Shoe Bit
Our impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series.
Our matrix height ranges from 6mm to 16mm.
Impregnated Casing Shoes Bits
Impregnated casing shoe bits are recommended for very hard and fractured formations. They can be manufactured in all series and varying impregnation heights to suit your individual requirements.
Notice :
To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.
Size:
SINOCOREDRILL bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.
Crown Height:
SINOCOREDRILL offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
Matrix:
SINOCOREDRILL impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.
Threads:
standard Q threads as well as thread types required by clients are available.
Size Available:
Q series:AQ,BQ,NQ,HQ,PQ,BQ3,NQ3/NQTT,NQ2,HQ3/HQTT,PQ3/PQTT
T2 Series: T2 46,T2 56,T2 66,T2 76,T2 86,T2 101
T6 Series: T6 76,T6 86,T6 101,T6 116,T6 131,T6 146, T6S 101
T Series: T36,T46,T56,T66,T76,T86
Z Series: Z46,Z56,Z66,Z76,Z86,Z101,Z116,Z131,Z146
B Series: B36,B46,B56,B66,B76,B86,B101,B116,B131,B146
WF Series: HWF,PWF,SWF,UWF,ZWF
WT Series: RWT,EWT,AWT,BWT,NWT,HWT
WM Series: EWM,AWM,BWM,NWM
WG Series: EWG,AWG,BWG,NWG,HWG
Others: NMLC,HMLC,LTK48,LTK60,BGM,NGM,ADBG,TBW,TNW,
ATW,BTW,NTW,NXD3,AX,NX,NXC,AXT,T6H,4 9/16,NWD4,412F,SK6L146,
TT46,TB56,TS116,CHD10
