Product Details:
|
| Name: | Water Swivel | Size: | BQ NQ HQ PQ |
|---|---|---|---|
| Standard: | DCDMA | Application: | Wireline Core Drilling |
| Material: | Alloy Steel | HS: | 8207199000 |
| Weight: | 15kg | ||
| High Light: | drilling rig parts,wireline core drill parts |
||
1, high quality and long life service
2, professional production
3, whole-set drilling tools
4,good after-sale services
Product Introduce:

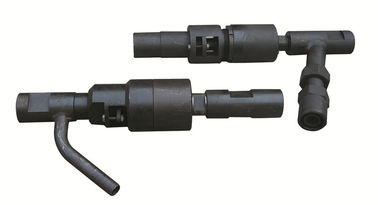

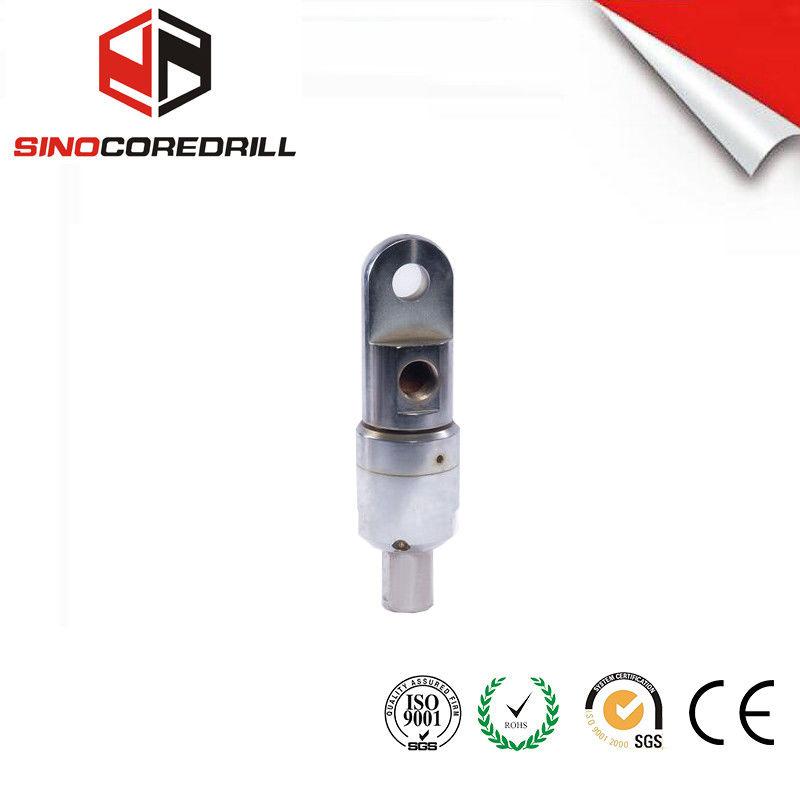

The production is divided into four types of water fittings, generally characterized by on-site maintenance easy, good sealing performance.
Designed to meet the high drilling in speed of wire line core exploration, our water swivels have following features: tight, small volume, light easy maintenance, single action and good seal.
Type 02 water swivel produced by our company could cooperate with Q series drilling tools within 1500meters drilling application
Features:
1.High efficiency and long service lifespan are always available for this water
swivel.
2.High-quality materials and thread treatment have been used in its
manufacture.
3.Its automatically adjustable sealing ring is capable of guaranteeing normal
operation of water-supplying rod.
4.Transverse device is equipped for it.
5.It features compact frame and light weight.
6.It is easy to work together with common tools.
Water swivel component details
|
Number |
Name |
Quantity |
Remark |
|
1 |
Elbow |
1 |
|
|
2 |
Spindle nut |
1 |
|
|
3 |
Washer |
1 |
|
|
4 |
O ring |
1 |
46 (ID)*2.5 |
|
5 |
Upper swivel body |
1 |
|
|
6 |
Spring |
1 |
|
|
7 |
Swivel packing |
1 |
|
|
8 |
Water tube |
1 |
|
|
9 |
V seal |
1 set |
40(OD)*6.5 |
|
10 |
O ring |
1 |
22(ID)*2.5 |
|
11 |
Thrust bearing |
1 |
6207 |
|
12 |
Spindle |
1 |
|
|
13 |
Thrust bearing |
1 |
8307 |
|
14 |
Base |
1 |
|
|
15 |
Packing housing |
11 |
|
|
16 |
Thrust bearing |
1 |
107 |
|
17 |
Retaining ring |
11 |
felt |
|
18 |
Lower swivel body |
1 |
|
|
19 |
Base casing |
1 |
|
|
20 |
O ring |
1 |
22(ID)*2.5 |
