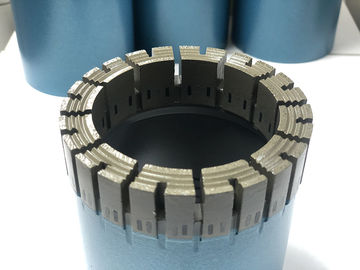

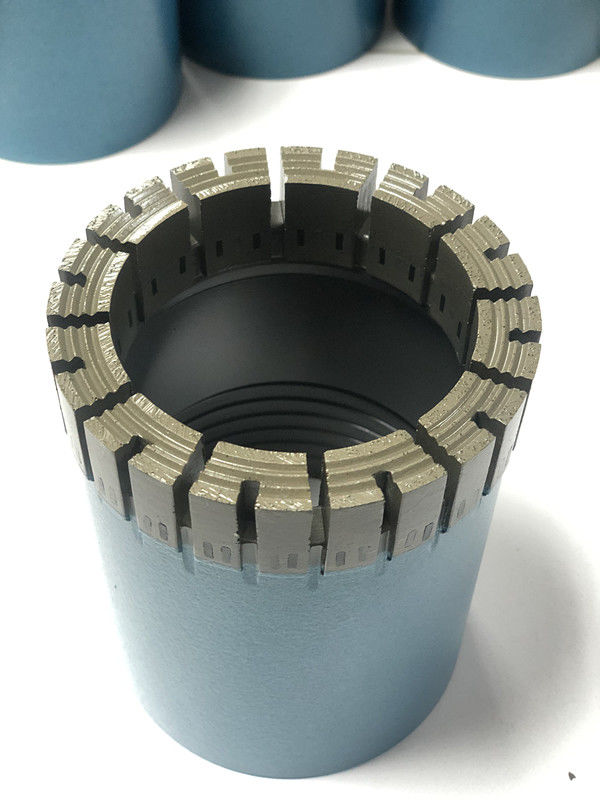

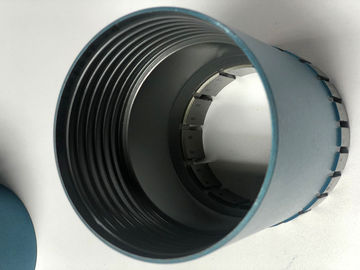

NTW Thin Wall Turbo Type Double Tube Diamond Core Bit , Diamond Drill Bit

NTW HTW Thin Wall Turbo Type Double Tube Impregnated Diamond Core Bit

THIN-WALL DIAMOND IMPREGNATED DRILL BIT

Cost reduction and efficiency improvement ; compared with the general drill bit ,further 20~50% footage can be realized in the same stratum.,

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Wireline series: BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76

T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: NMLC, HMLC

LTK series: LTK48, LTK60

WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H

Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm,

170mm, 219mm, 275mm
