Product Details:
|
| Power: | 34.7KW | Temperature Of Heating Plate: | 170~250℃(±5℃) MAX270℃ |
|---|---|---|---|
| Power Supply: | 380V/415V 50Hz/60Hz | Total Weight: | 3200kg |
| Materials To Apply: | PE/PP/PVDF/HDPE | Range Of Diameters: | 800、900、1000、1100、1200 |
| High Light: | plastic tube welding machine,plastic pipe welding equipment |
||

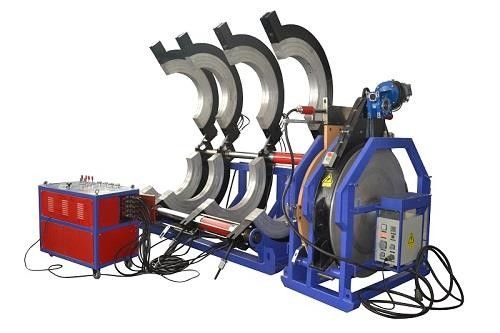

380V Welding Machine BRDH 1200 Hydraulic Big Pipe Welding Machine
This series fusion welding machines, including BRHD-1200 and BRDH-1600, are 380V welding machine, it is a plastic welding equipment, used for the welding job of big plastic pipe that the diameter may more than 1200mm from 1600mm. And the clamp flip is driven by hydraulic pressure.
Characteristic:

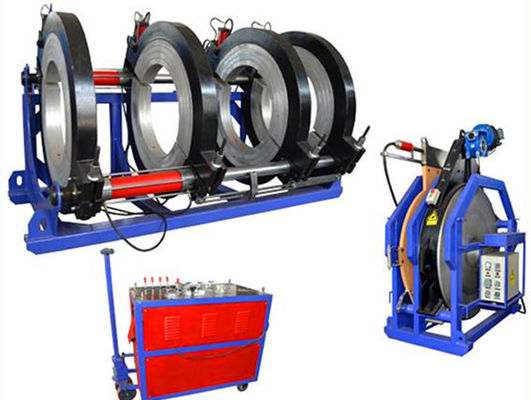

1, It is composed of four parts: operating platform (hydraulic and electric), clamps, heating plate and milling cutter.
2, The clamps are separated from the operating system, and can be easy to operate in the ditch.
3,the clamps are designed with double - card structure, which is accurate and easy to adjust the error variable.
4,the driving force is powered by hydraulic control system, which is used for welding and pressure protection, that can make the pressure accurate and stable.
5,the heating plate uses the electronic temperature control, with digital display for reading the numbers accurately.
6.Removable PTFE coated heating plate with separate temperature control system.
7.Suitable for welding of plastic pipes and fittings made from PE,PP&PVDF.
Specifications of butt fusion welding machinery
| Model | BRDH 1200 | BRDH 1600 |
| Range(mm) | 800,900,1000,1100,1200 | 1200,1400,1600 |
| Temperature of Heating Plate | 170~250℃(±5℃) MAX270℃ |
170~250℃(±5℃) MAX270℃ |
| Power Supply | 380V/415V 50Hz/60Hz | 380V/415V 50Hz/60Hz |
| Total Power | 34.7KW | 65.8KW |
| Total Weight | 3200kg | 6300kg |
Application: The butt fusion welding machinery can be used for welding pipes which are made of HDPE,PP,PP-R,PVDF materials and etc. BRDH-1200 series is used for the pipe which diameter is from 800mm to 1200mm. And the BRDH-1600 is for the pipe from 1200mm to 1600mm. These fusion welding machinery are applied to the job site, and also can be used to make pipe fittings in the workshop.
Our Service
➢ Presale consultancy service.
➢ Customers can visit the company at any time.
➢ Customized service and OEM/ODM for all the customers.
➢ Guarantee technical support remote or on site.
➢ Close follow-up of all orders by special person and keep customers informed timely.
➢ 24 hours after-sale support service.
QUALITY ASSURANCCE
● All the equipment has a quality guarantee and company promise paper.
● All information required for export, including proforma invoices and contracts.
● Strict certification of equipment inspection.
● 100% inspection before the machines start to shipment.
● Operation manual of equipment and regular training for inspection staff.
● Remote and on site technical support and training for all clients.
