Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment

Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment
Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment

Large Image :  Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment

Product Details:
Place of Origin: CHINA
Brand Name: BD
Certification: ISO
Model Number: BRDHS-200-2A BRDHS-200-4A
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: AS PER DETAILED INQUIRY
Packaging Details: STANDARD EXPORTING PACKAGE
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T
Supply Ability: 20 SETS PER MONTH

Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment

Description
TYPE: BRDHS-200-2A BRDHS-200-4A Range (mm): 63, 75, 90, 110, 125, 140, 160, 180, 200
Temperature: 170~250ºC(±5ºC), Max270ºC Power Supply: 220V/240V 50Hz/60Hz
Highlight:

plastic tube welding machine

,

plastic pipe welding equipment

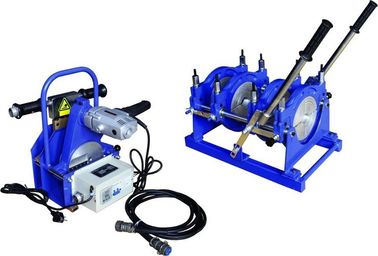

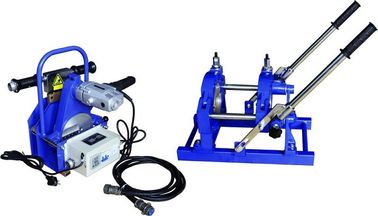

BRDHS-200-2A BRDHS-200-4A Manual Plastic Pipe Welding Fusion Machine





This two BRDHS series pipe soldering machines, are manual 220V pipe welding machines, used for the pipe diameter from Φ 63 to Max. Φ200mm.

One has two clamps on the frame called 200mm-2A welding machine. Another called 4A-200mm that has two pairs clamps. And they are all portal manual welding machines.

All these two machines can be used for plastic pipe welding job, that is made of PP, PVDF, PE and HDPE materials.



(1)It is composed of three parts: pipe clamps, the heating plate and the milling cutter.

(2)The clamps use the double jacket structure, which is easy to adjust the error variable.

(3)Using the wire rod drive structure in order to transmit smoothly and operate easily.

(4)It has the function of pressure display and pressure protection.

(5)It can display the butt pressure.

(6)Using electronic temperature control for high precision.





Specifications of plastic fusion welding machine





Model BRDHS 200-2A BRDHS 200-4A
Range (mm) 63, 75, 90, 110, 125, 140, 160, 180, 200
Temperature 170~250ºC(±5ºC), Max270ºC
Power Supply 220V/240V 50Hz/60Hz
Total Power 2.48kw 2.48kw
Total Weight 54.5kg 55.5kg
Pipe Clamps 1 pair 2 pairs
Optional Stub end holder/Data logger/Special inserts/Other accessories



Application:



The machines can be used for welding pipes which are made of HDPE, PP, PP-R, PVDF materials and etc, and the pipe diameters ranging from 63mm to 160mm.

Experience and markets:
Our company founded in 2007. For 10 years of development, we are now a professional plastic pipe welding equipment manufacturer in China.
The brand is "Wuxi Baoda", that we not only sell the machines to customers in China, but also our main foreign customers are all over Asia, America, Africa, Australia and Europe.



Advantages


High Quality--We always take the quality of our products as the first place to serve our customers.
Industry Expert--Ten years of development, and we have a complete team of technology, production and management.
Customized Service--Customize the machines that our customers want, also OEM & ODM are available for us.
Standardization--Technical standardization and the standard system of enterprise production management
Certification--We have ISO, UKAS, ECM and quality management system certification.



HDPE pipe manual welding machine process


A:)Contract
B:)Assembling
C:)Processing
D:)Painting
E:)Parts Testing
F:)Checking
G:)Packing



Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment 0Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment 1Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment 2

Manual Operation Plastic Pipe Welding Fusion Machine , Fusion Welding Equipment 3
