Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters

China Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters supplier
Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters supplier Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters supplier Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters supplier

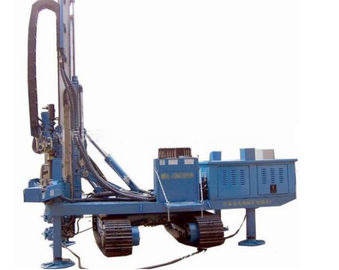

Large Image :  Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters

Product Details:

Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO9001
Model Number: 185D

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Price: USD
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T, L/C, Western Union
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description
Type: Anchor Drilling Rig Jet Groutingg Model: 185D
Hole Diameter: 150~250 Mm Hole Depth: 200~150m
Rod Diameter: 73 /89/102/114 MM Hole Angle: 0~90 °
Weight: 6350kg Size: 5400X2100x 2100mm



73 /89/102/114 MM Rod Diameters Hydraulic Anchor Drilling Rig 185D Maximum Drilling Depth 200 meters



Anchor Drilling Rig is a hihg efficiency drilling rig mainly for anchoring ,jet grounting and dewatering , this series drilling rig is all -Hydraulic operated drill accordance with the requirements of subway , high -rise building , airport and the other deep foundation pit .



Main features:





1. Suitable for the following process construction.

1.1 the anchoring is suitable for drilling, drilling and drilling of drill pipe.

1.2 swirl spray can be suitable for single weight, double, triple swirl spray, etc., with different modules for single weight, double, triple swirl, spray and spray.

2, torque and rotational speed can be according to the actual need to carry on the reasonable arrangement, advance schedule is 3.4 meters, 3 meters drill pipe, casing can be compound drilling, can according to different formation configuration corresponding torque gyrator, improve the adaptability of the rig.

3. Equipped with crawler chassis, high rotating platform, large diameter leg oil cylinder, 0.9 meter slide frame and orifice support device, which makes the drilling rig shift and positioning extremely convenient, and the drilling is stable and reliable.

4. Equipped with clamping shackle to make loading and unloading drill pipe and casing labor intensity low efficiency and high efficiency.

5. Developed corresponding drilling tools, which can meet the construction process:

5.1 three-wing bit drilling, slurry slag, suitable for high - speed drilling in soil layer and sand layer.

5.2 air drill hammer drilling, air discharge slag.Suitable for the construction of rock strata and broken layers.

5.3 hole bottom hydraulic hammer drilling, mud discharge.It is suitable for construction of heavy water content such as crushing layer and sand egg layer.

5.4 casing drilling.

5.5 drill pipe and casing compound drilling.

Scope of application:

Foundation pit precipitation micro-filling pile, geothermal hole (well) construction, investigation, static contact (static contact of 5T), dynamic contact, etc.



Model 135D 150D 200D
Hole diameter(mm) Φ150~Φ250 Φ150~Φ250 Φ150~Φ250
Hole depth(m) 100-140 130-170 180-220
Rod diameter(mm) Φ73 or Φ89 Φ73or Φ89 Φ73or Φ89
Drill angle(°) 0-90 0-90 0-90
Rotary speed(r/min) 10/20/25/40/50/
60/70/100/120/140
10/20/30/35/40/60/
65/70/85/130/170
40/45/80/85/
90/170
Rotary torque(N.m) 6800 7500 10000
Stroke(mm) 3400 3400 3400
Feed stroke(mm) 65 70 78
Lifting speed(m/min) 0~1.4,/7/18/26 0~5,/7/23/30 0~1.4 adjustable /16/18
Pressure(KN) 33 36 40
Pressure speed(m/min) 0~2.8,/14/36/80 0~10,/14/46/59 0~2.8 adjustable /32/35
Input power(KW) 55+18.5+2.2 55+18.5 55+30+2.2
Weight(kg) 6000 6000 9200
Transport demenssion(L×W×H mm) 5400×2100×2000 5400×2100×2000 6350×2100×2250

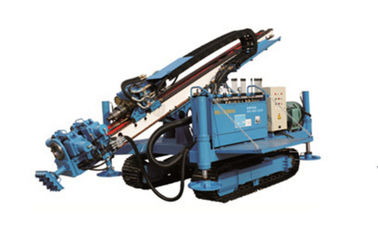

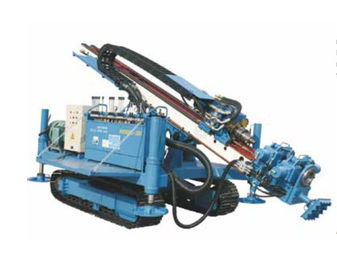

Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters

Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod DiametersHydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters

Hydraulic Anchor Drilling Rig , Core Drilling Machine 73 /89/102/114 MM Rod Diameters
