Strong Temperature Resisting BQ BWL Plastic Drill Core Trays
  • name
  • name
  • name

Strong Temperature Resisting BQ BWL Plastic Drill Core Trays

Brand Name: SINOCOREDRILL
Model Number: BWL NWL HWL PWL
MOQ: N/A
Packaging Details: Sea Delivery Package
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO9001
Type:
Core Box / Core Tray
Material:
PP
Color:
Black / Cream White
Size:
BQ NQ HQ PQ
Cover:
Not Include
Application:
Take Core Sample
Supply Ability:
Based on Detailed Order
Highlight:

wireline coring system

,

wireline core drill parts

Product Description

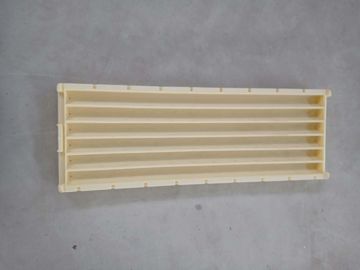

BQ BWL Plastic Core Box Core Trays With Strong Lid Core Cover





Strong bearing capacity



Sinocoredrill The u-shaped bottom surface folding design of the inner groove, the use of multi-row reinforcement bars and the lateral side gradient thickening support of the box body have greatly increased the capacity of the box body to bear weight, and the box body will not be deformed in long-term use.



Storage safety



Nested fixed between the upper and lower body positioning, positioning, and between the tray and a positioning block connection solid, smooth movement, make the stack and save the storage space, suitable for core security for a long time.





Packing :

Model Quantity
Nude / 20’GP Nude / 40’GP Nude / 40’HQ Pallet (1.1*1.1*2m)
BQ 2150 4300 5300 168
NQ 2150 4300 5300 168
HQ 1380 2760 3400 123
PQ 1200 2400 2960 108
Lid 30 pieces into a carton
Block 2000-1000 pieces into a carton

















Model

Core diameter

(mm)

 Single channel width(mm) Channel number Net weight
(kg)		 Dimension
(mm)		 Grade Raw material Standard color Color Optional
BQ 45 48 6 2.06-2.3 1070×385×50 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
NQ 49 55 5 2.1-2.4 1070×385×55 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
HQ 65 69 4 2.1-2.5 1070×385×70 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
PQ 85 92 3 2.6-3.1 1070×385×93 A premium PP Light yellow yes
B Medium PP Light gray yes
C Recycled plastic black No
Lid ----- ----- ------- 1.2 1070*385 A premium ABS Light yellow yes
B Medium ABS Light gray yes
Block --------- -------- -------- ------- BQ/NQ/HQ/PQ A premium ABS Light yellow yes
Tag ----- ----- ------- ------ ----- ---- ------ ------- -----















Strong Temperature Resisting BQ BWL Plastic Drill Core Trays 0







Strong Temperature Resisting BQ BWL Plastic Drill Core Trays 1

Strong Temperature Resisting BQ BWL Plastic Drill Core Trays 2
