Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity

Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity
Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity

Large Image :  Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity

Description
High Light:

core drill rigs

,

diamond core drilling

Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity



Specifications:

HYDX-2 Full Hydraulic Portable Drilling Rig is a kind of light rig designed for geological exploration in remote area difficult to enter. It is mainly suitable for diamond drilling with wire line coring technique.

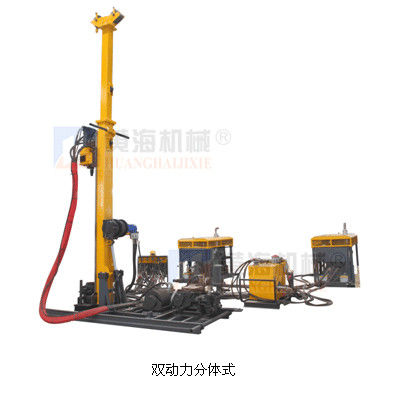

The rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wireline winch, drill head, feed system, footclamp, etc.



The rig is completely hydraulic driven for all its surface coring function. Fission style design makes the rig in good assemblability and disassemblability, facilitating transportation to most inaccessible areas. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.



Ⅱ. Main Technical Features:
1. Full Hydraulic and Drill Head model. The drill head rotation is realized with four hydraulic pumps driven by five diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed.

2. With Good dismantlability. The rig is adopted fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section.

So they are in light weight and can be carried by man power or animal power. The rig can be applied and performed in narrow space for
drilling of hole at 45°-90° with stronger adaptability.

3. Strong techniques adaptability. Besides diamond drilling with wire line coring technique, it is in
strong techniques adaptability. It is applicable for the drilling and feeding requirement of any other
stratum.





Technical Parameters of HYDX-2 Core Drill Rig:





 Model

 Parameters



 BQ

 350 m

 Drilling capacity

 NQ

 230 m



 HQ

 120 m



 Model

 5 doublecylinder R2V870

air-cooled diesel engine

 Dynamical system

 Rated power/weight

 11kw/59kg



 Rated rotating velocity

 2500r/min

 Power head

 Torque range Range of rotating speed

 334-930 N.m 0-900 rpm



 Feeding and lifting stroke of oil tank

 1700 mm

 Feed system

 Hoisting capacity

 50 KN



 Feeding capacity

 25 KN



 Max. lifting force

 18 KN

 Main winch

 Lifting speed Wireline capacity

 84 m/min 30 m



 Diameter of steel wire rope

 φ12 mm



 Lifting power

 8.4 KN

 Wireline coring winch

 Lifting speed Wireline capacity

 90-240 m/min 500 m



 Diameter of steel wire rope

 φ6 mm

 Slurry pump

 Type

 BW-100A

Overall dimensions of host machine

 Length × width ×height

 3500×1500×1300 mm

 Weight

 Max. weight of disintegration part

 100 kg

Portable HYDX-2 Core Drill Rig Full Hydraulic Drilling Rig With 2500r / min Rotating Velocity 0
