High Efficiency Horizontal Directional Drilling Rigs , Crawler Drill Rig FDP-15L

High Efficiency Horizontal Directional Drilling Rigs , Crawler Drill Rig FDP-15L

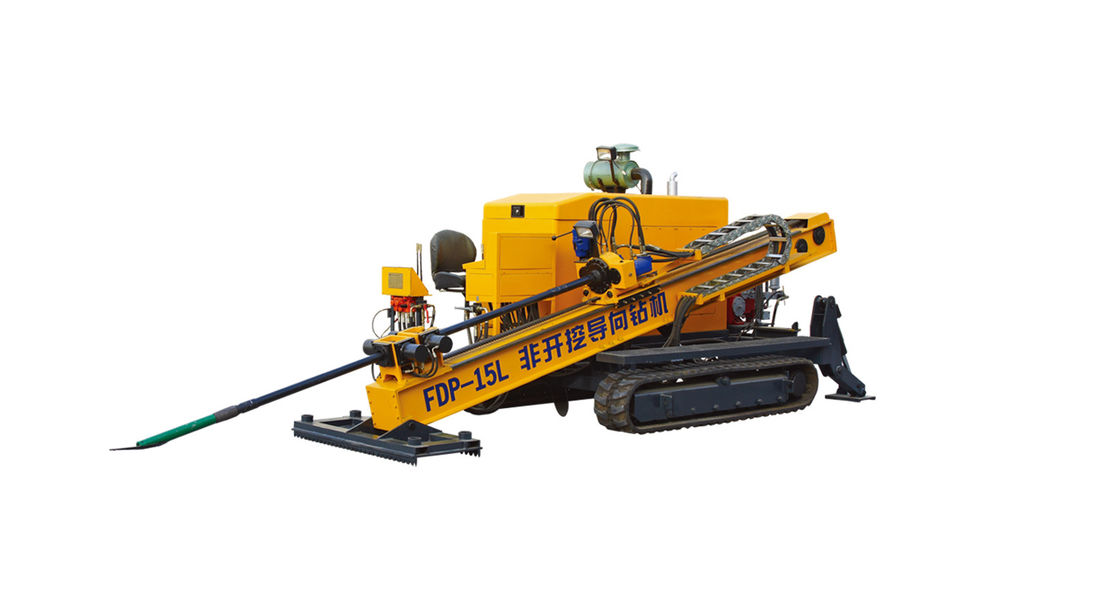

The FDP-15L is a full hydraulic Horizontal Directional Drilling Rig self-propelled with rubber crawler belts. With advanced and compact structure, high efficiency, low oil temperature; main hydraulic components, motor and mud pump all selected and adopted from domestic famous-brand products as auxiliary equipments; equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on its own and it is quick for transportation and allocation. With movable mast, the rig is guaranteed to drill within the full angle scope. It is in good stability with graveful structure.

• With low emission diesel engine, it is suitable for performance in city; direct fuel injection requires not preheat in winter
• The chassis and mast are high in rigidity and intensity, they are durable and reliable.
• Equipped with hydraulic outriggers, the rig could be adjusted to balance and stability with convenience and easiness.
• The mud pump is driven hydraulicly with four-speed machanical gear shift/stepless speed change. With controllable wide flow range, the displacement could be adjusted flexibly according to different geological conditions and performance techniques.
• Equipped indicidually of mud processing unit, adopting injection and recirculation storage procession method, the efficiency will be increased and the intensity of labor will be decreased.
• With the rod, 60mm in diameter and 3000mm in length, the drilling tools are complete in matching accessories and could be produced in accordance with the requirement of clients unusually.

• The Main Machine
  Power of Engine		66.25KW(89HP)(2200R/MIN)
  MAX.PUSH CAPACITY		75KN(16860 1BF)
  MAX.PULL CAPACITY		150KN(33720 1BF)
  RATED TORQUE		4200 N.M(3096 1BF.FT)
  HOLLOW SPINDLE RPM		LOWER 0-6R/MIN
  		HIGH 0-120R/MIN
  FEEDING STROKE		3500 MM(137.8 INCH)
  DIAMETER OF GUIDE HOLE		Φ80 mm(3.15 inch)
  Drilling angle		0°-20°
  PRESSURE OF HYDRAULIC SYSTEM		20-25MPA(2901-3626 PSI)
  TRAVELING  SPEED		2.5KM/H (8200 FEET/H)
  STRUCTURAL STYLE		INTEGRATED WITH RUBBER CRAWLER AND MUD PUMP
  DIMENSION(LXWXH)		5800X2050X2380 MM(228X81X94 INCH)
  WEIGHT		6100 KG (13450IB)
  MUD PUMP
  SPECIFICATION	BW-160A
  MAX.DISCHARGE	160 L/MIN (42.3 US GALLONS/MIN)
  PEAK PRESSURE	10MPA(1450 psi)
  MUD PROCESS SYSTEM
  MUD TANK	1.5M³(53 feet³)
  DRILLING TOOLS  AND AUXILIARY SYSTEM
  SPECIFICATION  OF ROD	Φ60X3000 MM (Φ2.36X118 INCH
  GUIDE BIT	Φ 80 MM(3.15 INCH)
  REAMER	Φ179；Φ259；Φ313；Φ365；Φ417mm(Φ7.05；Φ10.2；Φ12.32；Φ14.37；Φ16.42inch )
  DISTRIBUTOR	25T(55125 IB
  TRACKER	Optional PART
