Product Details:
|
| Product Name: | Horizontal Directional Drilling Rigs | Power Type: | Hydraulic |
|---|---|---|---|
| Model: | FDP-20 | Max.Pull Capacity: | 200KN |
| Rated Torque: | 6000.N.M | Material: | High-solid Steel |
| High Light: | hdd horizontal directional drilling,horizontal directional drilling machine |
||

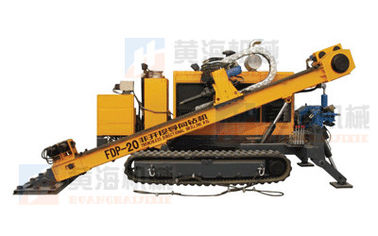

Hydraulic Horizontal Directional Drilling Rigs 110kw With Rubber Crawler Belts
The FDP-20 is a full hydraulic Horizontal Directional Drilling Rig self-propelled with rubber crawler belts, integrated with power station and main power. It is convenient for moving and powerful of flexibility. Equipped with Cummins diesel engine, the rig is powerful with stable property. Adopting double-motor driven to the power head, the rotation will be steady with large torque. The power head equips with self-float shackle device to reduce the wearing of screw thread of the drilling rod, and then the operation will be easy and stable. All hydraulic hoses are covered into the protecting jacket to increase the service life. Convenient angle-adjusting cylinder, flexible adjusting of incidence drilling angle, adopting motor-chain machanism to the feeding pull-back, the same thrust power and pulling capacity, effect the direction controlling at a long distance easily. Double-holder makes the rod loading and unloading efficient. The FDP-20 rig is with the advantages of full hydraulic driven, centralization control, easy and nimble to operate.
|
The Main Machine |
||
|
Power of Engine |
Cummins 110KW@2200RPM |
|
|
No.of ENGINE CYLINDER |
6 |
|
|
MAX.PUSH CAPACITY |
200KN |
|
|
MAX.PULL CAPACITY |
200KN |
|
|
RATED TORQUE |
6000.N.M |
|
|
HOLLOW SPINDLE RPM |
LOWER 0-70R/MIN |
|
|
HIGH 0-140R/MIN |
||
|
FEEDING STROKE |
3500 MM |
|
|
DIAMETER OF GUIDE HOLE |
Φ89 |
|
|
Drilling angle |
8°-18° |
|
|
PRESSURE OF HYDRAULIC SYSTEM |
20MPA |
|
|
TRAVELING SPEED |
1.6KM/H |
|
|
STRUCTURAL STYLE |
INTEGRATED WITH RUBBER CRAWLER AND MUD PUMP |
|
|
DIMENSION(LXWXH) |
5900X2100X2000MM |
|
|
WEIGHT |
6500 |
|
|
MUD PUMP |
||
|
SPECIFICATION |
BW-160A |
|
|
MAX.DISCHARGE |
160 L/MIN |
|
|
PEAK PRESSURE |
10MPA |
|
|
MUD PROCESS SYSTEM |
||
|
MUD TANK |
1.5M³ |
|
|
DRILLING TOOLS AND AUXILIARY SYSTEM |
||
|
SPECIFICATION OF ROD |
Φ60X3000 MM |
|
|
GUIDE BIT |
Φ 80 MM(3.15 INCH) |
|
|
REAMER |
Φ179；Φ259；Φ313；Φ365；Φ417mm |
|
|
DISTRIBUTOR |
30T |
|
|
Hydraulic anchor |
Optional Part |
|
|
Automatic loading device for drilling rod |
Optional Part |
|
|
TRACKER |
Optional PART |
|
