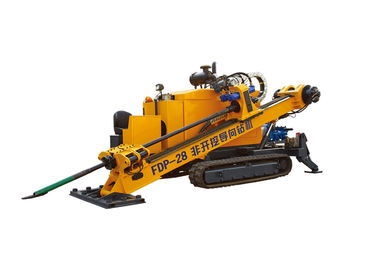

The FDP-28 horizontal directional drilling rig is driven with full hydraulic system. Propelled with its own crawlers. With reasonable structure, easy operation, high efficiency; main hydraulic components, motor and mud pump all selected and adopted from domestic famous-brand products as auxiliary equipemts; with durable rubber belts of crawlers, the rig is suitable for moving in the city with no injury of pavement. And the rig could get on and off standard trailer on its own and it is quick and convenient for transportation and allocation. With low center of gravity, the rig is durable and reliable and in good stability with graceful structure.

• The key parts and auxiliary components are selected and adopted from famous-brand products at home and abroad.

• Adopted stronger power and low noise of Cummins diesel engine, the rig is more suitable to be applied for performance in the city.

• With high torque and stable performance, the drill head is driven by four parallel motors in two speeds.

• With wired remote control, the track assemblies are easy to operate.

• The mud pump is driven hydraulically with mechanical gear shift/stepless speed change. The displacement could be adjusted flexibly according to different geological conditions and performance techniques.

• Adopted the rod, 73mm in diameter and 3 meters in length, the drilling tools are complete in matching accessories and could be produced in accordance with the requirement of clients unusually.

• Equipped with hydraulic outriggers, the rig could be adjusted to balance and stability with convenience and easiness.

• Equipped individually of mud processing unit, adopting injection and recirculation storage procession method, the efficiency will be increased and the intensity of labor will be decreased.

• FDP-28/FDP/28Z Technical Information

  The Main Machine
  Power of Engine	132KW(177HP)@2200r/min
  Max. Push capacity	280KN (62944 lbf)
  Max. Pull capacity	280KN (62944 lbf)
  Rated Torque	10000 N·M(7370 lbf·ft)
  Hollow Spindle RPM	Lower 0-56r/min
  	High 0-112r/min
  Feeding Stroke	3300 mm(130 inch)
  Diameter of Guide Hole	130 mm(5.12 inch)
  Drilling Angle	0°20°
  Pressure of hydraulic system	20Mpa(2901 psi)
  Traveling speed	2-2.6 km/h(6560-8528 feet/h)
  Structural Style	integrated with rubber crawler and mud pump
  Dimension (L×W×H)	5700×2100×2000 mm(225×83×79 inch)
  Weight	8200 kg(18080 lb)
  Mud Pump
  Specification	BW-250
  Max. Discharge	250 L/min(66US Gallons/min)
  Peak Pressure	10 Mpa(1450 psi)
  Mud Process System
  Data of engine	4KW(5.4HP) petrol engine
  Pump parameter	KGP30, 30 M3/h (1059 feet3/h)
  Mud processing capacity	6 M3/h (212 feet3/h)
  Mud Tank	2M3 (71 feet3/h)
  Drilling tools and auxiliary system
  Specification of Rod	73×3000 mm(2.87×118 inch)
  Guide Bit	130 mm(5.12 inch)
  Reamer	325;400;500;600;720mm (12.8;15.7;19.7;23.6;28.3 inch)
  Distributor	40T(88200 lb)
  Tracker	Optional Part
