| Product Name: | Horizontal Directional Drilling Rigs | Power Type: | Hydraulic |
|---|---|---|---|
| Model: | FDP-60 | Max. Push Capacity: | 610KN (137130 Lbf) |
| Application: | Underground Pipe Laying | Material: | High-solid Steel |
| High Light: | hydraulic drilling rig,horizontal directional drilling machine |
||

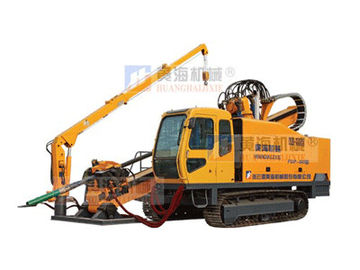

FDP-60 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.
Equipped with the diesel engine at the power of 225KW, the drill rig is powerful enough to deal with various problems. The all new FDP-60 provides 610KN of feeding&pulling force and Max. 27000N·m. Torque to gain successful performances. The rack and pinion transmission system is designed with advanced technology, which ensures much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly. The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of two tons is attached with the main machine to ensure convenient working for operator. Suitable mud is supplied for drilling by the mud pump with Max flow 600L/min and Max pressure 8 Mpa.
The main hydraulic components are all famous brand from European and American suppliers, transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.
FDP-60 Rig is mainly used for the civic construction especially for underground pipe laying with 600KN pull capacity.
The Main Machine | |
Power of Engine | 225 KW(302HP)@2200r/min |
Max. Push capacity | 610KN (137130 lbf) |
Max. Pull capacity | 610KN (137130 lbf) |
Rated Torque | 27000 N·m(19900 lbf·ft) @45 r/min |
13500 N·m (9950 lbf·ft) @90 r/min | |
Hollow Spindle Rotation | 045 r/min |
090 r/min | |
Feeding Stroke | 6000 mm(236.2 inch) |
Diameter of Guide Hole | 240 mm(9.5 inch) |
Drilling Angle | 8°18° |
Move Mode | Propelled with Track Assemblies |
Dimension (L×W×H) | 9000×2750×2800 mm(354×108×110 inch) |
Weight | 24000 kg(52920 lb) |
Mud Pump | |
Specification | BWF-600 |
Max. Discharge | 600 L/min(158.5 US Gallons/min) |
Peak Pressure | 8 Mpa(1160 psi) |
Weight | 650kg(1433 lb) |
Drilling tools and auxiliary system | |
Specification of Rod | 102×5000 mm(4.02×197 inch) |
Guide Bit | 170 mm(6.7 inch) |
Reamer | 425;500;680;760;820;920;1000 (16.7;19.7;26.8;29.9;32.3;36.2;39.4 inch) |
Distributor | 80T (176400 lb) |
Tracker | Optional Part |
