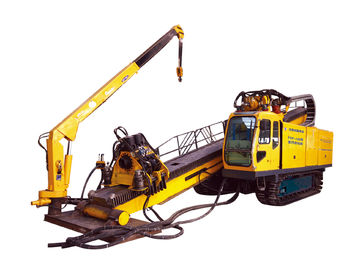

FDP-120 Hydraulic Horizontal Directional Drilling Rigs 1200KN ( 269760 lbf )

FDP-120 Hydraulic Horizontal Directional Drilling Rigs 1200KN ( 269760 lbf )
FDP-120 Hydraulic Horizontal Directional Drilling Rigs 1200KN ( 269760 lbf )

Large Image :  FDP-120 Hydraulic Horizontal Directional Drilling Rigs 1200KN ( 269760 lbf )

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

FDP-120 Hydraulic Horizontal Directional Drilling Rigs 1200KN ( 269760 lbf )

Description
Product Name: Horizontal Directional Drilling Rigs Power Type: Hydraulic
Motor Power: 338KW Spindle Torque: 50000N.m
Max. Rotation Speed: 160 Rpm Material: High-solid Steel
Highlight:

hydraulic drilling rig

,

hdd horizontal directional drilling

FDP-120 Hydraulic Horizontal Directional Drilling Rigs 1200KN ( 269760 lbf )



FDP-120 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.
Equipped with the diesel engine at the power of 338KW, the drill rig is powerful enough to deal with various problems. The all new FDP-120 provides 1200KN of feeding&pulling force and Max. 50000N.m. Torque to gain successful performances. The rack and pinion transmission system is designed with advanced technology, which ensures much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly. The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of three tons is attached with the main machine to ensure convenient working for operator.


The main hydraulic components are all famous brand from European and American suppliers, transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.





Specifications

FDP-120 Hydraulic Directional Drilling Rig is used for civic engineering - pipe laying.

1200KN(269760 lbf)

Pinion and rack type, moving with 4 gear driving with three-speed gear shift, stepless speed regulating
shift 7m/min (23 feet/min)
shift16m/min (52.5 feet/min)
shift28m/min (91.8 feet/min)

Gear transmission, stepless speed regulating
shift hollow spindle torque50000N·m(36850 lbf·ft)@38r/min
shift hollow spindle torque25000N·m(18425 lbf·ft)@76r/min

Weichai Power Co., Ltd

Two-motors 400kW (540HP), Single motor 360kW

Thrust/Pull and rotation all can reach above mentioned max performance index.

14.5×2.8×2.85m (47.6×9.2×9.3 feet)

30000kg (66150 lb)



4 1/25

325 ;530;660;760;900;1100mm

(12.8 ;20.9;26;29.9;35.4;43.3 inch)

Distance adjustable with accurate, stable and reliable breaking- out.

60000N·m (44220 lbf·ft)

120000N.m(88440 lbf·ft)

(It can be designed according to the requirement of client.)

0-1000L/min(0-264 US Gallons/min)

0-8Mpa(0-1160 psi)
