Truck Crawler HDD Rig With 1800KN Pull Capacity For Underground Pipe Laying

Description
Product Name: Horizontal Directional Drilling Rigs Power Type: Hydraulic
Motor Power: 450KW Spindle Torque: 70000N·m
Max. Rotation Speed: 160 Rpm Material: High-solid Steel
Highlight:

hydraulic drilling rig

,

hdd horizontal directional drilling

Truck Crawler HDD Rig With 1800KN Pull Capacity For Underground Pipe Laying





Specifications



FDP-180 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.

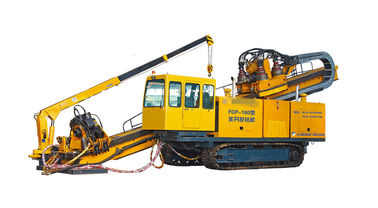

Equipped with the diesel engine at the power of 450KW, the drill rig is powerful enough to deal with various problems. The all new FDP-180 provides 1800KN of feeding&pulling force and Max. 70000N·m. Torque to gain successful performances. The rack and pinion transmission system is designed with advanced technology, which ensures much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly. The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of three tons is attached with the main machine to ensure convenient working for operator.
The main hydraulic components are all famous brand from European and American suppliers, transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.





Specifications



FDP-180 HDD Rig is mainly used for the civic construction especially for underground pipe laying, and with 1800KN pull capacity.



Main Drill Rig

Max. Feed Thrust/ Feed Pull

1800KN (404640 lbf)

Feed Thrust/ Feed Pull System

shift :9.5 m/min (31.2 feet/min)

shift :21 m/min (68.9 feet/min)

shift 32 m/min(105 feet/min)

Rotation Driving

Gear transmission, stepless speed regulating
shift hollow spindle torque70000N·m(51590 lbf·ft) @42r/min
shift hollow spindle torque

Motor

Manufacture

Weichai Power

Rated Value

470KW (640HP)

Operational State

Dual Power System Working

Operators Cab

Equipped with Air-conditioner

Dimension and Gross Weight

Dimension(L×W×H)

14.5×3.15×3m (47.6×10.3×9.8 feet)

Gross Weight

42 T(92610 lb)

Mast Entrance Oblique Angle

8°16°

Environmental Standard and Service

Engine Emissions and Noise Meeting European Standard

Drilling Tool

Drilling Rod Be Used

"5", 6 5/8

Reaming Shell

325;530;660;760;900;1100mm

(12.8;20.9;26.0;29.9;35.4;43.3 inch)

Shackles

Clamp Holder Centering by Itself

Clamper /Break-out Tong

Distance adjustable with accurate, stable and reliable breaking-out

Max. Make-up Torque

70 KN·m (51590 lbf·ft)

Max. Break-out Torque

140 KN·m (103180 lbf·ft)

Crane On the Rig

3 T(6615 lb) Straight-arm Grane

Mast of Rig

Length of Mast 14 Meters(45.9 feet)

Hydraulic Mud Pump

Full Hydraulic Driving, Flux Stepless Adjustable.

Flux Rate

01500 L/min(0-396 US Gallons/min)

Pressure

010 Mpa(0-1450 psi)

Chassis

Track Assembly Type

Accessory

Pressure, flux rate, revolution and other more than ten dates will be shown in figures. This is easy for analysis and judgment of problems and condition in the performance process.
