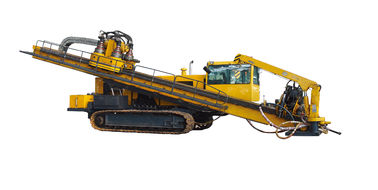

4500KN HDD Horizontal Directional Drilling Rigs FDP-450 Max.120000Nm Torque

4500KN HDD Horizontal Directional Drilling Rigs FDP-450 Max.120000Nm Torque

FDP-450 SPECIFICATIONS:

Main Machine

Total Length: 17000mm(669 in)

Total Width: 3200mm (126 in)

Total Height:3400mm (134 in)

Weight (Ex Mud mixer system, drilling rod and tools): 39000kg(86666Lb)

FDP-450 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.

Equipped with the diesel engine kit and separate power station, the drill rig is powerful enough to deal with various problems. The all new FDP-450 provides 4500KN of feeding&pulling force and Max.120000N·m.Torque to gain successful performances. The rack and pinion transmission system is designed with advanced technology, which ensures much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly. The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of 4 tons is attached with the main machine to ensure convenient working for operator.
The main hydraulic components are all famous brand from European and American suppliers, transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.

Power Unit

Total Length: 8000mm(315 in)

Total Width: 2300mm (91 in)

Total Height:2400mm (95 in)

Weight: 18000kg(40000Lb)

OPERATIONAL

Maximum Pullback: 4500KN (1012397 Lbf)

Maximum Torque (low speed): 120000Nm(88800 lbf·ft)

Maximum Thrust Speed: 27m/min(89feet/min)

Maximum Rotation (Low speed): 42 rpm

Maximum Rotation (High speed): 84 rpm

DRILL STEM

Type: API Standard

Length: Up to 9.6m(31.5 feet)

Pipe diameter: 140mm(5.5 in) or 168mm(6.625 in)

DRILLING FLUID SYSTEM

Maximum Pressure: 35Mpa (5076 psi)

FLUID CAPACITIES

Hydraulic Tank:1450L(383 US Gallon)

Fuel Tank: 2 x1600L(2 x 423 US Gallon)
