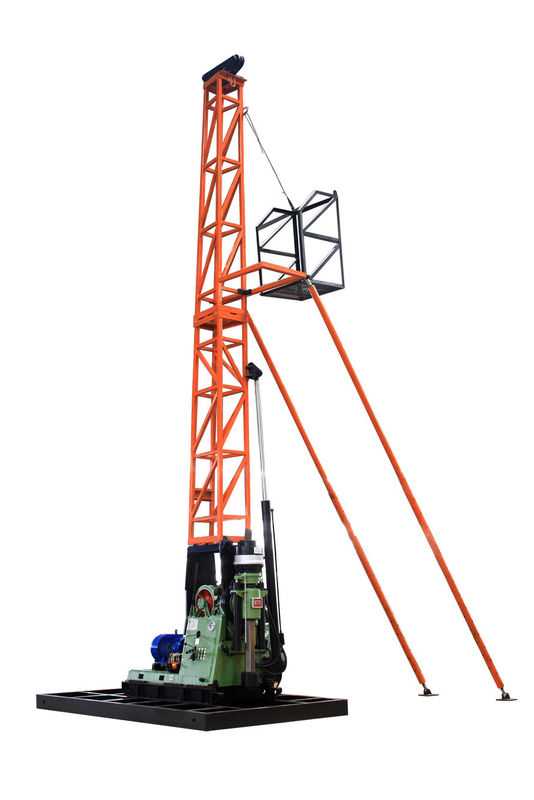

Mining Core Drill Rig ,XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER

Mining Core Drill Rig ,XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER
Mining Core Drill Rig ,XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER

Large Image :  Mining Core Drill Rig ,XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Mining Core Drill Rig ,XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER

Description
High Light:

Hydraulic drill rig

,

core drill rigs



XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER





Ⅰ. Application Scope

The XY-2BT core drill rig, integrated rig with tower into one unit, consists of XY-2B drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle.

It is especially suitable for drilling of hole with great slope angle. The tower body of HXY-2BT Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°

General :

XY-2B Core Drill is up-dated designed according to the development of geological works to meet the needs of users. It is a new type spindle core drill rig.

It is applicated for engineering geological exploration drilling, hydrogeology well drilling and big-hole
basic engineering drilling including core drilling with tungalloy-carbid-tipped and diamond bit mainly.

The rig’s characteristics as follows:

1. Light in weight, easy relocation.

2. Adopting traversal winch, this will overcome the fault of wire arbitrary intertwine and quick wearing out of the winch laid in lengthways.

3. Belt transmission is adopted for the high speed level to make the drill soft in the uneven formation, and reduce the damage to the components and other mechanical failure.

4. In large spindle hole.

5. With wide speed range and large torquemoment in lower speed, it is suitable for engineering geological
subterranean and water explorations.

6. The rig is stable in relocation and firmly for position.

7. Deutz F3L 912 diesel engine or 22Kw electric motor for your selection



Main Components



The drill tower consists of base, tower body, crownblock (pulley mechanism), platform and auxiliary support.



Main Components





The drill tower consists of base, tower body, crownblock (pulley mechanism), platform and auxiliary support.



Specifications

  1. Drilling capacity

(1) Core Drilling





Rod Size

Drill Depth



42 mm

530m



50 mm

385m



60 mm

320m



43 mm wire-line drill rod

640m



53 mm wire-line drill rod

500m



63 mm wire-line drill rod

380m



AW

530m



BW

420m



NW

320m



AQ wire-line drill rod

565m



BQ wire-line drill rod

460m



NQ wire-line drill rod

350m





(2) Projects of Hydrology, Water Well and Large diameter Hole Drilling



Rod Size

Hole Diameter

Drill Depth

60 mm

150 mm

250 m

60 mm

200 mm

200 m

73 mm

300 mm

100 m



2. Power engine

Diesel engine    Deutz F3L 912      28KW (37.5HP)       1500 rpm

Electromotor       Y180L-4           22KW (29.5HP)       1470 rpm



3.Dimensions (L×W×H) (without tower)------------------------------- 2220×900×1800 mm



4.Weight of drill (without power unit and drill tower)--------------about 1200 kg (2645 lb)





2. About us





We are one of the leading manufacturers of diamond core drilling rigs in China ,



We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.



We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to provide professional service to satisfy you.



3. Service



Shipping time depends on the destination.

After we ship the goods, we will email you the shipping information, as well as tracking details.

The goods will be delivered by the most reasonable way for delivery.



 4.Warranty and After-sales services:



1.  All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.



2.  We offer lifer-long technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.



5.Feedback:



1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service



2. We care about our valued customers, and will always try to help you



6. Product view




Mining Core Drill Rig ,XY-2BT SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER 0
