|Model:||BRHD 355||Materials To Apply:||PE/PP/PVDF/HDPE|
|Range Of Diameters:||160/180/200/225/250/280/315||Environment Temperature:||- 5 To 45 ºC|
|Power Supply:||220V/240V 50Hz/60Hz||Total Power:||4.42 Kw|
|Max. Pressure:||6 Mpa||Net Weight:||209 Kg|
plastic pipe fusion welding machine,
plastic pipe welding equipment

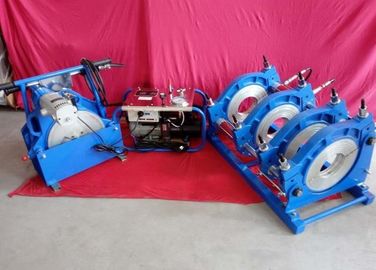

Hydraulic Semi-automatic HDPE Pipe Butt Fusion Welding Machine Φ 160mm To Φ 355mm
This two Hdpe Pipe Butt Fusion Welding Machine, series type is BRHD-315 and BRDH-355, are manually 220V welding machine, both used for the welding job of plastic pipe which is made of PP, PVDF, PE and HDPE materials. The diameter range of BRDH-315 is from Φ 160mm to Φ 315mm. And the range of BRDH-355 is from Φ 200mm to Φ 355mm.
Characteristic:(1) It is composed of four parts: operating platform (hydraulic and electric systems), clamps, heating plate and milling cutter. (2)The clamp is detachable,which can be used for welding the special pipe fittings (tee, elbow, flange, etc.). (3)The clamp is separated from the operating system, and it is easy to operate on site. (4)The clamp uses the double - card structure, which is accurate and easy to adjust the error variable. (5) The hydraulic system is used to control the butt pressure which can make the pressure accurate and the operation stable. (6) Using the electric solenoid valve to control the oil cylinder running more convenient and reliable. (7) The heating plate uses the electronic temperature control, and the digital display is accurate and intuitionistic.
Specifications of fusion welding hdpe pipe
|Materials to apply||PE/PP/PVDF/HDPE|
|Range of diameters||160/180/200/225/250/280/315||200/225/250/280/315/355|
|Environment temperature||- 5 to 45 ºC|
|Power supply||220V/240V 50Hz/60Hz|
|Total power||4.42 Kw||5.05 Kw|
|Include||Heating plate||2.75 Kw||3.2 Kw|
|Planing tool||1.1 Kw||1.1 Kw|
|Hydraulic unit||0.75 Kw||0.75 Kw|
|Dielectric resistance||>1 MΩ||>1 MΩ|
|Max. pressure||6 Mpa||6 Mpa|
|Volume of oil reservoir||3 L||3 L|
|Max Temperature of heating plate||270 ºC||270 ºC|
|Single effective cylinder area||1000mm2||1000mm2|
|Net weight||209 Kg||209 Kg|
1. Apply to the pipe working job on site, for connecting PE/PP/PVDF/HDPE pipes. Also can be used to make pipe fittings in the workshop.
2. High reliability and exceptional design are used in sensors and several meters..
3. The sealing ring, the quick joint, and some valves use the imported parts.
4. Use double-edge blade for cutting pipe, and an extra pair of blades are for free with the machine.
Related complete sets of equipment:
Application: The hdpe fusion machines can be used for welding pipes which are made of HDPE, PP, PP-R, PVDF materials and etc. Also the HDPE pipe butt fusion machine can be used both on site and inside. And the pipe diameters ranging from 160mm to 355mm.
Experience and markets:
In 2007, the year we company founded. With about 10 years of development, our company now is a professional enterprise engaged in R & D, production and sales of plastic pipe welding equipment.
Our brand is "Wuxi Baoda", which is the famous brand of pipe welding machine in China. Baoda is a Chinese company with a global perspective. We have been in business including some countries as below:
United Arab Emirates
Product Quality--Strictly control of the quality requirements.
Industry Expert--We have our own R & D and production team.
Customized Service--Customize the machines that our customers want, also OEM&ODM are available for us.
Standardization--Technical standardization and the standard system of enterprise production management
Certification--We have ISO, UKAS,ECM and quality management system certification.
➢ Presale support for all customers.
➢ Free face-to-face touring and communication of our factory.
➢ We provide customized design for our clients.
➢ Guarantee on-time technical support on site according to the customers.
➢ Close follow-up of all orders by special person and keep customers informed timely.
➢ After-sale request will be responded in 24 hours.
Hdpe fusion machine process
