|Model:||BSCJ 1200||Materials To Apply:||PE/PP/PVDF/HDPE|
|Range Of Diameters:||200-1200||Environment Temperature:||- 5 To 45 ºC|
|Power Supply:||220V/415V±10% 3 Phase 50 Hz/60Hz||Total Power:||7.7 Kw|
|Net Weight:||6500KG||Angular Error:||≤1°|
|Adjustable For Angle Cutting:||0°～ 67.5°||Bandsaw Linear Velocity:||230mm/min|
|Dielectric Resistance:||>1 MΩ|
plastic pipe fusion welding machine,
plastic pipe welding equipment
Automatic pipe cutting machine Big Size Plastic Pipe Band Saw Bandsaw linear velocity 230mm/min

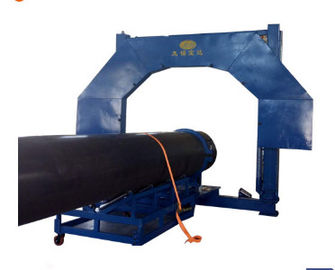

BSCJ-1200 automatic pipe cutting machine is a pipe cutter machine for cutting plastic pipe in the workshop, which is used to produce pipe fittings for welding. This kind of machine is composed with the pipe cutting band saw which is mainly used to cut the big pipe which diameter can be to maximum about 1200mm.
Pipe cutting band saw Details
|Materials||PE PVC PP HDPE|
|Adjustable for angle cutting||0°～ 67.5°|
|Bandsaw linear velocity||230mm/min|
3 phase 50 Hz
|Total power||7.7 Kw|
|Hydraulic unit||1.5 Kw|
|Dielectric resistance||>1 MΩ|
Equipment of automatic pipe cutting machine characteristics
1. Pipe cutter machine Applicable to cut plastic pipe fittings in the workshop. Pipe that can be processed as follows, PE/PP/PVDF/HDPE.

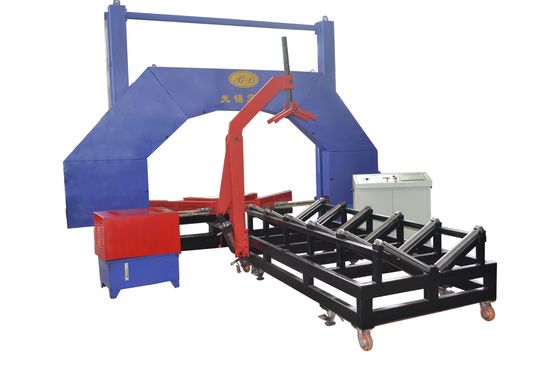

2. Composed of frame rack, control box and the pipe bracket, pipe clip arm.
3. Through angle adjustment, pipe can be cut to 0-67.5°.
4. Standard 380V/415V power supply and 50/60Hz power frequency input, or fully adapt to the local demand.
5. Integrated and modular design, pipe bracket with wheels is for convenient movement.
6. The motor will shut down automatically if the saw breaks, in order to keep the operator and machine safe.
7. Use the angle ruler to adjust the suitable degrees.
Application: Make pipe fittings in the workshop for elbow, tee, cross and y type for welding. The cutting angle can be from 0 to 67.5 degrees. Use 380V/ 415V 50Hz/60Hz power supply to drive the motor. This automatic pipe cutting machine is applicable to pipeline manufacturers, engineering companies and other companies who related to the pipe processing.
