Product Details:
|
| Model: | BRCJ 630 | Materials To Apply: | PE/PP/PVDF/HDPE |
|---|---|---|---|
| Environment Temperature: | - 5 To 45 ºC | Power Supply: | 380V/415V±10% 3 Phase 50 Hz |
| Total Power: | 4.5 Kw | Angular Error: | ≤1° |
| Adjustable For Angle Cutting: | 0°～ 67.5° | Bandsaw Linear Velocity: | 205mm/min |
| Pipe Diameter: | 630mm | ||
| High Light: | plastic pipe fusion welding machine,plastic pipe welding equipment |
||

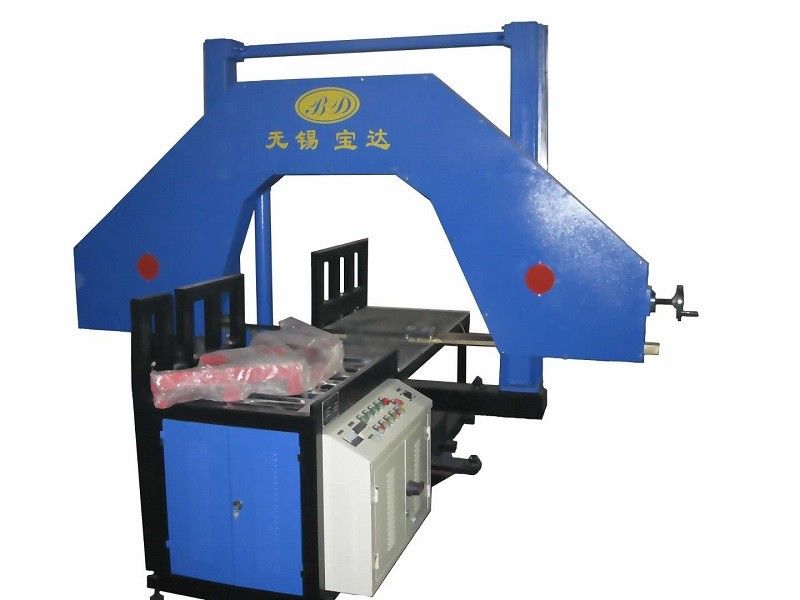

PE PVC PP HDPE pipe cutting machine 205mm/min pipe can be cut to 0-67.5°
BSCJ-630 is one of the series cutting machines for the production of elbows, tees, crosses and fabrications in the workshop. This machine uses the 380V power supply and the pipe can be cut which the diameter is to maximum of 630mm.
Tubing cutter machine Specifications
| Type | BSCJ 630 | |
| Materials | PE PVC PP HDPE | |
| Cutting capacity | ≤630mm | |
| Adjustable for angle cutting | 0°～ 67.5° | |
| Bandsaw linear velocity | 205mm/min | |
| Power supply | 380V/415V±10% 3 phase 50 Hz |
|
| Angular error | ≤1° | |
| Total power | 4.5 Kw | |
| Include | Motor | 3Kw |
| Hydraulic unit | 1.5 Kw | |
| Dielectric resistance | >1 MΩ | |
| Max. pressure | 10 Mpa | |
| Weight | 1500kg | |
Pipe profile cutting machine characteristics
1. Applicable to cut plastic pipe fittings in the workshop. Pipes that can be processed as follows, PE/PP/PVDF/HDPE.
2. The control box is integrated with the frame rack.
3. Through angle adjustment, pipe can be cut to 0-67.5°.
4. The control box is covered by waterproof design.
5. Standard power supply voltage and power frequency input, fully adapt to the local demand.
6. Integrated and modular design, easy to operate and maintain.
7. The motor will shut down automatically if the saw breaks, to keep the operator safe.
Why choose us?
1. We can make and manufacture products according to customer specific needs.
2. Provide best and professional service for you, please contact with us freely.
3. For more information, please contact us at any time.
4. Stable performance, best price, good quality, good after-sales service.
Hearty service:
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machine.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round.
Service before sale:
Customer-oriented: Best-developed, the most economic and the most suitable soultion will be carefully designed to meet the customers' taste and needs.
Service in sale:
Careful preparation: Deeper communication with and fuller understanding of the customers and their needs will de achievedin such ways: Market survey, technique change, training and consultancy.
Service after sale:
A. Try our best and ensuring their satisfation
B. Achieve the best ruselts at all costs
C. Be honest, respecting the customers, new service, high economic
We always respect the customers' choices. We devote ourselves to providing satisfactory products and service at low costs., taking the extent of the customers' satisfaction as the sole standard, and so we have earned their long-term trust.
Advantages
Product Quality — Strict quality inspection during the machines processing.
Professional Team — Engineers in our company who major in machine design and development.
Customized Service — Provide the customize service for all the machines according to our customers' requirements, also we offer the OEM&ODM service.
Standardization — Machine design and production comply with the national industry standards.
Certification — Product industry certification, like ISO, UKAS, ECM, etc.
QUALITY ASSURANCCE
● Quality guarantee and company promise paper.
● Information required for export, including proforma invoices and contracts.
● Strict certification of equipment inspection before packing.
● 100% inspection before the machines start to shipment.
● Operation manual of equipment and regular training for inspection staff.
● Remote and on-site technical support and training for all clients.
● Online or offline trouble shooting.
Customer questions
1. 24-hour Online service
Contact us feel free. We provide you with 24 hours better pre-sale and after sale service.
2. Competitive price
We offer the competitive price to our customers according to the orders and machines.
3. Warranty
We have our quality assurance system and warranty service measures. Each machine will come with the warranty paper for products.
4. OEM/ODM
We offer the customizing OEM service if our customers need. And it includes the design, production, transportation,etc.
5. Distributor
To be a better manufacturer of plastic pipe machines, we are looking forward to working with more OEM/ ODM distributor and partners all over the world, and wish to create a better future.
