Product Details:
|
Model: | BRCJ 1600 | Materials To Apply: | PE/PP/PVDF/HDPE |
---|---|---|---|
Adjustable For Angle Cutting: | 0°~ 67.5° | Power Supply: | 380V/415V±10% 3 Phase 50 Hz |
Total Power: | 7.7 Kw | Angular Error: | ≤1° |
Bandsaw Linear Velocity: | 230mm/min | Pipe Diameter: | 1600mm |
Highlight: | plastic pipe fusion welding machine,plastic pipe welding equipment |
CNC tube cutter large pipe cutting 1600mm PE PVC PP HDPE Pipe

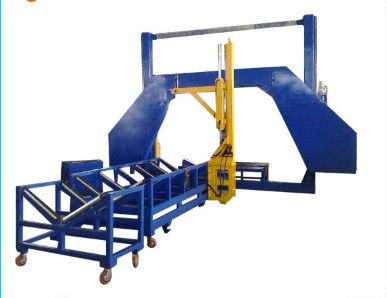

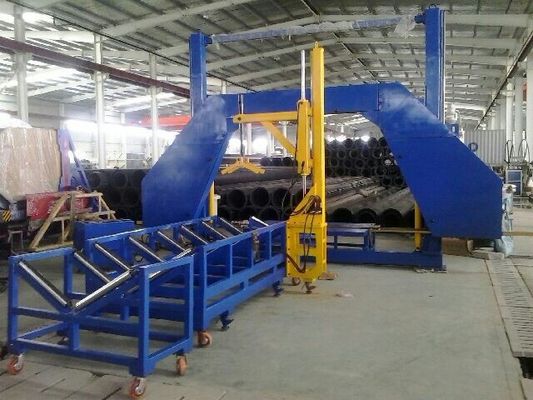

The cnc band saw machine is the pipe machine integrated with the cnc band saw which is applicable for cutting plastic pipe in the workshop. BCSJ-1600 cnc band saw cutting machine is one model of the pipe cutting machine of our company, which is for big pipe that the diameter can be to maximum about 1600mm.
CNC tube cutter Details
Type | BSCJ 1600 | |
Materials | PE PVC PP HDPE | |
Cutting capacity | ≤230mm | |
Adjustable for angle cutting | 0°~ 67.5° | |
Bandsaw linear velocity | 230mm/min | |
Power supply | 380V/415V±10% 3 phase 50 Hz |
|
Angular error | ≤1° | |
Total power | 7.7 Kw | |
Include | Motor | 5Kw |
Hydraulic unit | 1.5 Kw | |
Dielectric resistance | >1 MΩ | |
Weight | 9000 kg |
Equipment of cnc band saw machine characteristics
1. Applicable to cut plastic pipe fittings in the workshop. Pipe that can be processed as follows, PE/PP/PVDF/HDPE.
2. Composed of frame rack, control box and the pipe bracket.
3. Through angle adjustment, pipe can be cut to 0-67.5°.
4. Standard 380V/415V power supply and 50/60Hz power frequency input, or fully adapt to the local demand.
5. Integrated and modular design, pipe bracket with wheels is for convenient movement.
6. The motor will shut down automatically if the saw breaks, in order to keep the operator and machine safe.
7. The pipe clip arm is the device for stable the processing pipe with the hydraulic system driven.
CNC band saw cutting machine application: Make pipe fittings in the workshop for elbow, tee, cross and y type for welding. The cutting angle can be from 0 to 67.5 degrees. Use 380V/ 415V 50Hz/60Hz power supply to drive the motor. This machine is applicable to pipeline manufacturers mostly.
QUALITY ASSURANCCE
● Quality guarantee and company promise paper.
● Information required for export, including proforma invoices and contracts.
● Strict certification of equipment inspection before packing.
● 100% inspection before the machines start to shipment.
● Operation manual of equipment and regular training for inspection staff.
● Remote and on-site technical support and training for all clients.
● Online or offline trouble shooting.
