|Relative Humidity:||45%~95%||Voltage Range:||AC 176V~250V(±5℃) MAX270℃ 50HZ±1%|
|Surface Temperature Of Heating Dies:||260±5%, Or User Requirements||Insulation Resistance:||>1MΩ|
|Leakage Current:||≤5mA（AC Value）|
plastic pipe fusion welding machine,
plastic pipe welding equipment

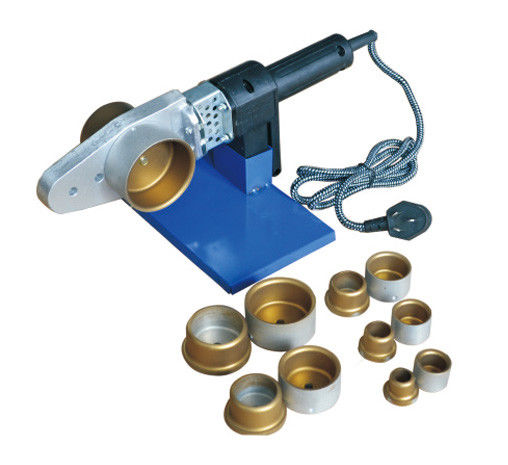

27mm Diameter Pipe Plastic Pipe Socket Welding Machine used for welding PE/PP/HDPE pipe
BDSH series socket welding machine is used for welding PE/PP/HDPE pipe. Mainly used for the water and gas pipe. This series has three models, BDSH-63 BDSH-110 and BDSH-160.
socket welding machine:
This machine is suitable for welding pipe in socket mode which is made of materials like PPR/PE/PB/PE-RT,etc,change die heads for different pipes.
Application: Suitable for PE, PPR and other pipe, pipe fittings hot melt socket connection job.
Specification: Preset welding parameters, will automatically choose the heating time after the pipe diameter selected.
The heating time is automatically timed and the alarm prompts after the welding finish.
Specifications of socket welding machine
|External diameter(mm)||Melting depth(mm)||Heating time(s)||Processing time(s)||Cooling time(min)|

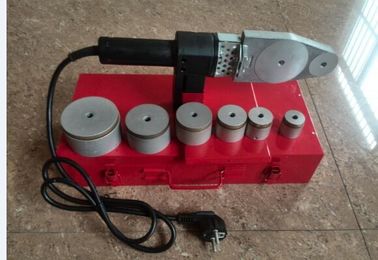

Plastic pipe socket welding machine Detail
Working Environment: -20℃~50℃
Relative humidity: 45%~95%
Voltage Range: AC 176V~250V(±5℃) MAX270℃ 50HZ±1%
Surface temperature of heating dies: 260±5%, or user requirements
Insulation Resistance: >1MΩ
Leakage current: ≤5mA(AC value)
Payment term: TT, LC
Delivery date: Negotiable
Packing: Wooden box package for export
Market: Middle East/Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Keywords: pvc welder machines/plastic pipe welding/pe welding machine
Instruction for use
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe's diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert
Product Quality--Strict quality inspection during the machines processing.
Professional Team--There are about 8 engineers in our company who major in machine design and development.
Customized Service--We provide the customize service for all the machines according to our customers' requirements, also we offer the OEM&ODM service.
Standardization--All machine design and production comply with the national industry standards.
Certification--Improve the competitiveness of the company's products through industry certification, like ISO, UKAS, ECM, etc.
Plastic pipe socket welding machine process
D:)Pipe Welding Test
● Quality guarantee and company promise paper.
● Information required for export, including proforma invoices and contracts.
● Strict certification of equipment inspection before packing.
● 100% inspection before the machines start to shipment.
● Operation manual of equipment and regular training for inspection staff.
● Remote and on-site technical support and training for all clients.
● Online or offline trouble shooting.
