Product Details:
|
| Model: | BRWH-600 | Power Of Heating Plate: | 17kw、15.5kw/380V |
|---|---|---|---|
| Temperature Difference Of Heating Plate: | ±10℃ | Max. Temperature Of Heating Plate: | 270℃ |
| Max. Adjust Pressure Of Hydraulic Station: | 10MPa | Power Of Hydraulic Motor: | 1.5KW |
| Sectional Area Of Hydro-cylinder: | 11.53cm2 | Max. Joint Deviation: | 0.75MM |
| Total Power: | 18.5kw,17kw | ||
| High Light: | plastic pipe fusion welding machine,plastic pipe welding equipment |
||

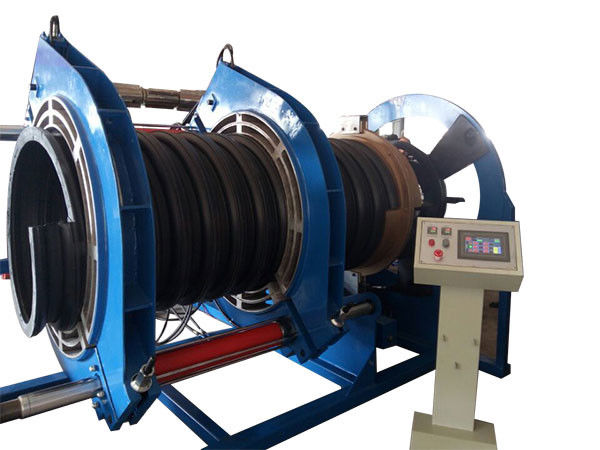

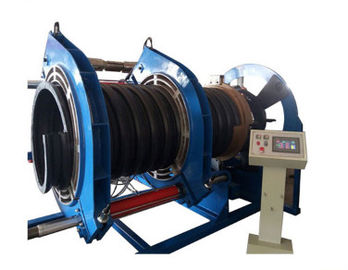

600MM Butt fusion welding- Corrugated pipe welding machine for spiral texture PE pipe
The best pipe hot welding machine for spiral texture PE pipe, BRWH-600 which is fit for the pipe diameter to 600mm. And with the system console, only one man can do all the pipe fittings processing job.
Corrugated pipe welding machine Specifications
| Index | Item | Unit | Detail |
| 1 | Pipe Diameter | ㎜ | DN600 |
| 2 | Max. Joint Deviation | ㎜ | 0.75 |
| 3 | Power of Heating Plate | kw/v | 17kw,15.5kw/380V |
| 4 | Temperature Difference of Heating Plate | ℃ | ±10 |
| 5 | Max. Temperature of Heating Plate | ℃ | 270 |
| 6 | Max. Adjust Pressure of Hydraulic Station | MPa | 10 |
| 7 | Power of Hydraulic Motor | kw | 1.5 |
| 8 | Sectional Area of Hydro-cylinder | cm2 | 11.53 |
| 9 | Insulation Resistance | ΜΩ | >1 |
| 10 | Total Power | kw | 18.5kw,17kw |
Corrugated pipe welding machine characteristics
1. Apply to the corrugated pipe welding process on-site and inside, which the pipe is made by PE/PP/PVDF/HDPE and else. All the processing is driven by control system.
2. A frame rack integrated with milling cutter, heating plate, and connected with the system console by a cable.
3. The control box is covered by waterproof design, and there are 4 wheels on the bottom to facilitate the movement of the console.
4. Independent design and development by our own for all the machine parts.
5. The main processing can be done by operating the touch screen, with several physical buttons for emergency action.
6. Standard power supply voltage and power frequency input, fully adapt to the local demand.
Application: Applied for welding the corrugated PE pipe which the pipe diameter about 600mm. The machine is fit for running under the suitable environment like the on-site, or in the workshop.
Experience and markets:
In 2007, the year we company founded. With about 10 years of development, We provide advices, experiences and products to companies and individuals in the polyethylene pipe industry worldwide.
From 2014, we started to R&D this series welding machine. And from 2016, this automatic series machines realized mass production for our customers all over the world.
QUALITY ASSURANCCE
● All the equipment has a quality guarantee and company promise paper.
● The information required for export, including proforma invoices and contracts.
● Strict certification of equipment inspection before packing.
● 100% inspection before the machines start to shipment.
● Operation manual of equipment and regular training for inspection staff.
● Remote and on-site technical support and training for all clients.
● Online or offline trouble shooting for all customers.
