Bellow Welding Machine for Pipe maximum to 400mm，380V welding machine for hdpe bellow pipe butt welding

Brand Name:	BD
Model Number:	BRWH-600
MOQ:	N/M
Price:	AS PER DETAILED INQUIRY
Packaging Details:	STANDARD EXPORTING PACKAGE

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Model:

BRWH-400

Power Of Heating Plate:

17kw、15.5kw/380V

Temperature Difference Of Heating Plate:

±10℃

Max. Temperature Of Heating Plate:

270℃

Max. Adjust Pressure Of Hydraulic Station:

10MPa

Power Of Hydraulic Motor:

1.5KW

Sectional Area Of Hydro-cylinder:

11.53cm2

Max. Joint Deviation:

0.75MM

Total Power:

18.5kw,17kw

Supply Ability:

20 SETS PER MONTH

Highlight:

400mm Pipe Welding Machine

380V Pipe Welding Machine

hdpe Pipe Welding Machine

Product Description

Bellow Welding Machine for Pipe maximum to 400mm,380V welding machine for hdpe bellow pipe butt welding

bellows welding machine introduction
Butt fusion welder for pe pipe for bellow pipe fittings, BRWH-400 is one of this series machines which was produced in 2015. It is also the 380V welding machine for hdpe bellow pipe butt welding. And the pipe diameter can be maximum to 400mm.

Specifications of bellows welding machine

Index	Item	Unit	Detail
1	Pipe Diameter	㎜	DN400, DN300
2	Max. Joint Deviation	㎜	0.75
3	Power of Heating Plate	kw/v	10kw,7kw/380V
4	Temperature Difference of Heating Plate	℃	±10
5	Max. Temperature of Heating Plate	℃	270
6	Max. Adjust Pressure of Hydraulic Station	MPa	10
7	Power of Hydraulic Motor	kw	1.5
8	Sectional Area of Hydro-cylinder	cm2	11.2
9	Insulation Resistance	ΜΩ	>1
10	Total Power	kw	11.5kw, 8.5kw

Bellows welding machine characteristics
1. Can be used to make corrugated pipe working job on-site or in the workshop, for connecting PE/PP/PVDF/HDPE pipe materials. All the processing is driven by control center integrated with hydraulic system.
2. The whole machine is integrated design that composed with frame rack, milling cutter, heating plate and the system control box.
3. The control box is covered by waterproof design.
4. Standard power supply voltage and power frequency input, fully adapt to the local demand.
5. One engineer can operate the control system to finish the pipe connecting job.

Application: Applied for welding the corrugated pipe fittings which diameter is from 300mm to 400mm indeed. Machine is fit for the water pipe joint job and gas project.

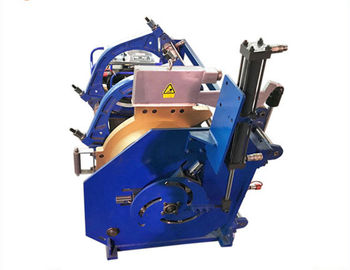

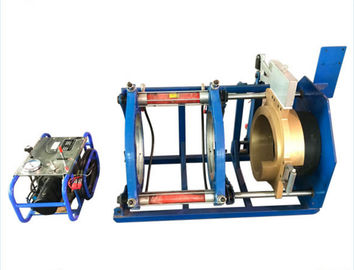

Bellow Welding Machine for Pipe maximum to 400mm，380V welding machine for hdpe bellow pipe butt welding 0

Index	Item	Unit	Detail
1	Pipe Diameter	㎜	DN400, DN300
2	Max. Joint Deviation	㎜	0.75
3	Power of Heating Plate	kw/v	10kw,7kw/380V
4	Temperature Difference of Heating Plate	℃	±10
5	Max. Temperature of Heating Plate	℃	270
6	Max. Adjust Pressure of Hydraulic Station	MPa	10
7	Power of Hydraulic Motor	kw	1.5
8	Sectional Area of Hydro-cylinder	cm2	11.2
9	Insulation Resistance	ΜΩ	>1
10	Total Power	kw	11.5kw, 8.5kw

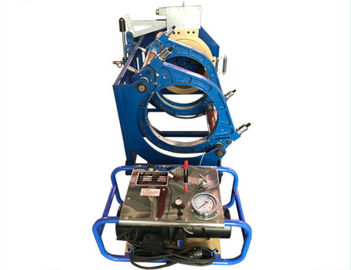

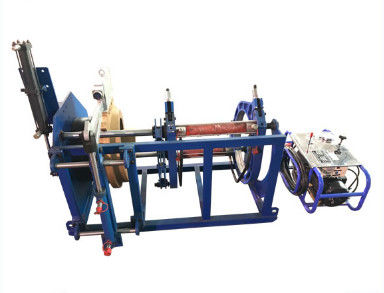

Bellow Welding Machine for Pipe maximum to 400mm，380V welding machine for hdpe bellow pipe butt welding 1
