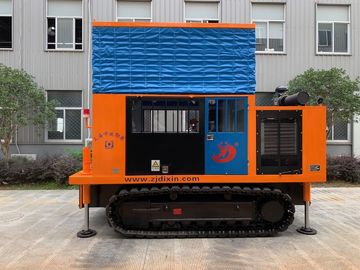

CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance

CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance
CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance

Large Image :  CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance

Product Details:
Place of Origin: CHINA
Certification: ISO9001
Model Number: Z25-X
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: BASED ON DETAILED ORDER
Packaging Details: STANDARD EXPORT PACKING
Delivery Time: 20 WORKING DAYS
Payment Terms: L/C, T/T

CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance

Description
Type: CPT Full Hydraulic Cabin Engineering Crawler Machine Chassis: Full Hydraulic Engineering Crawler Chassis
Engine:: Six-cylinder Of Water Cooled Diesel Engine, Rated Power - Speed: 85KW-2200r/min, Diesel Tank Capacity (L): 80 Supporting Platform And Horizontal Form: 4 Hydraulic Legs, 790mm Stroke
Max Transport Profile Size:: 4800×2500×3150 (L×W×H)mm Weight:: 20T
Speed:: 1~3(km/h) Ground Anchor Form: Single Or Multi-leaf Anchor Anchor Diameter (mm): 300~400
Highlight:

cone penetration apparatus

,

static cone penetration test apparatus

Cone Penetration Testing CPT Full Hydraulic Cabin Engineering Crawler Machine



Z25-X has top quality of full hydraulic engineering crawler chassis, which engine and hydraulic valve parts and other components are from famous enterprises both at domestic and abroad to ensure the stable and reliable performance of the equipment and timely after-sales service. Advanced hydraulic technology, using split-type combined multi-way reversing valve, has such good qualities, as compact structure, small size, convenient installation and maintenance, low pressure loss, good overload characteristics of overflow valve. Strong passability can carry out cone penetration operations in harsh environments such as beaches, river beaches, sand, snow, icy roads, paddy fields and muddy.



This cpt equipment can be used more than one machine. It is not only the ideal equipment for cone penetration testing. With accessories can be extended for in-situ soil test, such as CPTU, PMT, DMT, VST, WVT.



Max feature: The self-weight of the equipment can provide sufficient reaction force, all weather construction.

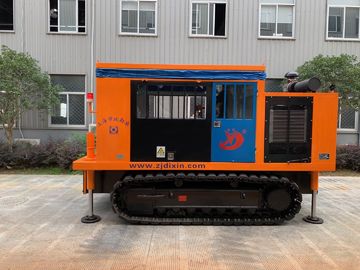

The industry's original of cone penetration box (patent no.: 201420649149.8), the top of the box is hydraulically lifted, and the four sides of the box can be opened and closed, rain and snow prevention, cold and sun protection, anti-theft, LED lighting, air condition(optional).



It is especially suitable for sites that cannot be anchored with anti-force anchors, such as: urban subways, viaducts, demolition and reconstruction of old towns, sand and other deep hole surveys that cannot effectively counter-force anchors.



Main Technical Specification:



Chassis: Full hydraulic engineering crawler chassis

Chassis drive: imported original hydraulic travel motor (international common use).

Chassis specification: steel Chassis (rubber block can be added), width of chassis is 600mm.

Engine: Six-cylinder of water cooled diesel engine, Rated power - speed: 85KW-2200r/min, Diesel tank capacity (L): 80

CPT Hydraulic cylinder device: Rated penetration force 200KN, Rated extraction force 230KN, 500mm or 1150 mm (optional)stroke for fast rise and direct casing

Box form: top of the box is hydraulically lifted, and the four sides of can be opened and closed.

Probe tube form: Mechanical probe holder or pad plug-in

Anchorage: Double force cpt equipment anchoring device

Supporting platform and horizontal form: 4 hydraulic legs, 790mm stroke

Max transport profile size: 4800×2500×3150 (L×W×H)mm

Weight: 20T (including all)

Hydraulic oil cooling form: Air cooled, Hydraulic tank capacity (L): 200

Speed: 1~3(km/h)

Walking slope: ≦30°

Working environment temperature: -25°C~-45°C

Ground anchor form: Single or multi-leaf anchor Anchor diameter (mm): 300~400

Matching probe: 10cm2 or 15cm2 of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).

Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).

Probe specifications (mm): integral high-strength joint-less probe Φ32~Φ42 (optional).





CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance 0







CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance 1



CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance 2



CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance 3



CPT Full Hydraulic Cabin Engineering Cone Penetration Test Apparatus Reliable Performance 4
