Thin Wall Btw Ntw Htw Wireline Double Tube Core Barrel Assembly Head Assembly Conventional Drilling

Brand Name:	SINOCOREDRILL
Model Number:	BTW NTW HTW
MOQ:	N/M
Price:	Based on detailed inquiry
Packaging Details:	standard export seaway package

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001:2008

Type:

Thin Wall BTW NTW HTW Wireline Double Tube Core Barrel Assembly

Size:

BTW NTW HTW

Length:

3m 1.5m

Application:

Conventional Drilling

8207199

Material:

Alloy Steel

Highlight:

core drill rigs

diamond core drilling

Product Description

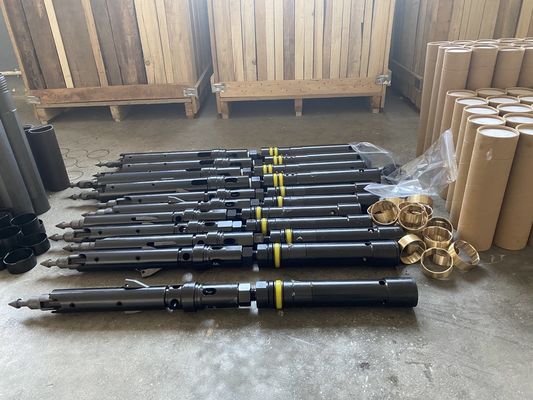

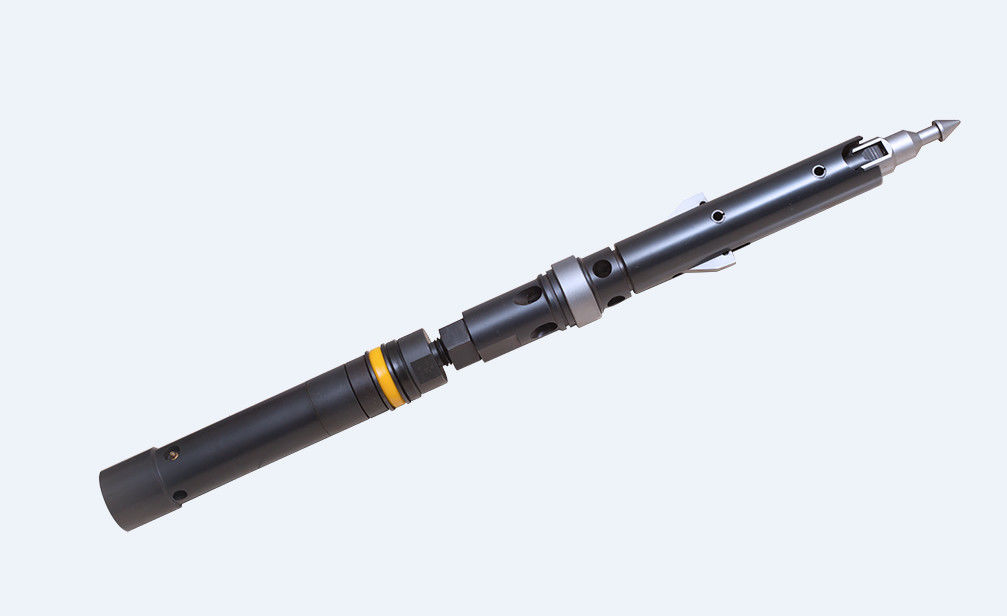

Thin Wall BTW NTW HTW wireline double tube core barrel assembly head assembly Conventional Drilling

Wire-line drill tools can lift drill core from dril rods without picking up bits .All the tools include principal parts of the drill tools . overshot assembly ,drill rods , holding dog, circle wrench and etc. Their advantage are higher penetration , higher core recovery ratio ,longer bit life and lower lab intensity ,and the advantages get more clear with the increasing of hole depth .

No.	Std.	Item	Bit Std.	Reamer Std.	Bit OD(mm)	Bit ID(mm)
TW Series
1	ATW	1.5M double tube core barrel	ATW	ATW	47.6	30.1
2	BTW	1.5M double tube core barrel	BTW	BTW	59.5	42.0
3	NTW	1.5M double tube core barrel	NTW	NTW	75.3	56.1

Thin Wall Btw Ntw Htw Wireline Double Tube Core Barrel Assembly Head Assembly Conventional Drilling 0

BQ core barrel NQ core barrel, HQ core barrel PQ core barrrel, NQ3 core barrel, HQ3 core barrel, PQ3 core barrel

T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel

T6-76 core barrel T6-86 core barrel T6-101 double/triple tube core barrel T6-116 double/triple tube core barrel T6-131 double/triple tube core barrel, T6-131 core barrel

NMLC double/triple tube core barrel, HMLC double/triple tube core barrel

HWF double/triple tube core barrel, PWF core barrel

NWG single/double tube core barrel, HWG single/double tube core barrel

NX single/double tube core barrel, HX single/double tube core barrel

LTK48 core barrel

M101 core barrel

412 F core barrel

Chinese Standard: Wireline 56, wireline 59, wireline 75, wireline 91...

Wire line core barrel

double tube core barrel

single tube core barrel

triple tube core barrel
