HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m

HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m
HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m

Large Image :  HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: HYDX - 5A
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T, L/C
Supply Ability: Based on Detailed Order

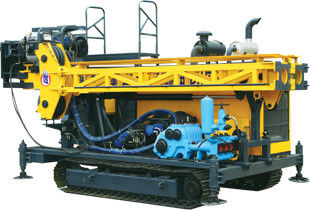

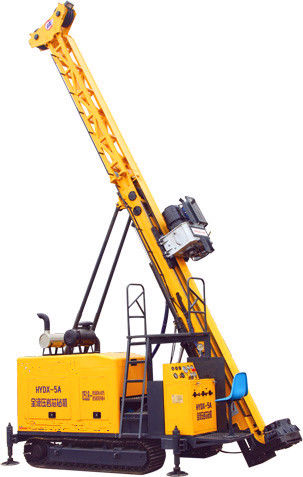

HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m

Description
Diesel Engine: Cummins 6CTA8.3-C195 Power: 145kW (195HP)
Speed: 1900rpm Hydraulic Chuck: PQ
Hold Diameter: 121 Mm(4.76 Inch) Weight: 13000 Kg(28665 Lb)
Dimensions (L × W ×H ): 5600×2240×2650mm Transport Way: Steel Crawler
High Light:

core drill rigs

,

diamond core drilling

HYDX - 5A Full Hydraulic Core Drill Rig With Crawler Mountd NQ 1300m HQ 1000m





The crawler drilling rig HYDX-5A new model full hydraulic drill rig is developed by H.H. Drill-Tech Drilling Machinery Co., Ltd. with reference of advanced technique of same kind equipment at home and abroad. The crawler drilling rig has a reasonable design and superior performance. It is easy to operate and for maintenance.



Overall Unit Features:


The crawler drilling rig adopts full hydraulic driving, traveling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The crawler drilling rig provides operator with a nice field of vision and wide and comfortable working condition. The HYDX-5A hydraulic crawler drill rig looks pretty in overall structure and embodies the design thought of people oriented.



Advantages:


(1) Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2) High Efficiency Crawler Drilling Rig
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig's high operation and performance efficiency.
(3) Environmental Protection Hydraulic Crawler Drill Rig
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4) Energy Saving Drilling Rig
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level.
With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.





Field of Application


HYDX-5A Type drill rig is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.





Main Performance Parameter of HYDX-5A



Diesel Engine Model Cummins 6CTA8.3-C195 (turbocharged and charge water cooled)
Displacement 8.3L (2.19 US Gallons)
Power 145kW (195HP)
Rated RPM(Factory setting) 2200rpm
Drilling Capacity Crawler Drilling Rig BQ 1500 m(4920 feet)
NQ 1300 m(4264 feet)
HQ 1000 m(3280 feet)
PQ 680 m(2230 feet)
Drill Head Rotation Motor Double Hydraulic Motors –variable and Reversible Maker:SAUER-DANFOSS
RPM Hydraulic Crawler Drill Rig Two Shifts/ Stepless Change 0-1145 RPM
Ratios 1st 8.776:1 2nd 2.716:1
Head Opener sidewise sliding way with hydraulic drive
  Hydraulic Chuck(PQ) Hydraulically opened, Disc Spring Clamping, Normally Closed Type Axial Holding Capacity of 222 400 N
Max. Torque Hydraulic Crawler Drill Rig 4650 N·m(3427 lbf·ft)
Hold Diameter 121 mm(4.76 inch)
Max. Lifting capacity of Spindle 150 kN(33720 lbf)
Max. Feeding Power 75 kN(16860 lbf)
Primary Pump Package Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. Maker: DANFOSS 1st Pump: at 25MPa 3rd Pump: 102 LPM at 25MPa
Hydraulic Tank Capacity 420 L (111 US Gallons)
  Hoisting Speed (single wire) 38-70m/min(bare drum)
Capacity of Main Hoisting force (single wire) 77kN(17310 lbf)
Steel Wire Diameter 18 mm(0.71 inch)
Steel Wire Length of Hydraulic Crawler Drill Rig 50 m(164 feet)
Hoisting Speed (single wire) 164m/min (bare drum)
Capacity of Wire line Hoist Mast Hoisting Force (single wire) 12 kN(2698 lbf) (bare drum)
Steel Wire Diameter 6 mm(0.24 inch)
Steel Wire Length 1500 m(4920 feet)
Mast Height of Hydraulic Crawler Drill Rig 11 m(36 feet)
Mast Adjusting Angle 0°—90°
Drilling Angle 45°—90°
Feeding Stroke 3800 mm(150 inch)
Slippage Stroke 1500 mm(59 inch)
Feed Pull 15000kg(33075 lb)
Feed Thrust 7500kg(16538 lb)
Rod Pull 3m or 6m(9.84feet or 19.68feet)
Mud Pump Type Reciprocating Pump Triplex Plunger
  Model BW250
Stroke 100mm(3.9 inch)
Output volume 250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min)
Discharge pressure 2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 psi)
Foot Clamp Clamping Scope 55.5-117.5 mm(2.19-4.63 inch) through hole Ф154mm(6.06 inch)
Other Weight 13000 Kg(28665 lb)
Dimensions (L × W ×H ) 5600×2240×2650mm (220×88.2×104.3 inch)
Transport Way Steel Crawler



























































1) Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home  and abroad.

2) High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.

3) Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.

4) Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

2. Field of Application
HYDX-5A Type Drill Rig is mainly used for slope and straight holes drilling. It could be used for
exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other
industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.



2. About us



We are one of the leading manufacturers of diamond core drilling rigs in China ,



We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.



We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to provide professional service to satisfy you.





3. Service



Shipping time depends on the destination.

After we ship the goods, we will email you the shipping information, as well as tracking details.

The goods will be delivered by the most reasonable way for delivery.









1.  All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.



2.  We offer lifer-long technical support to our drilling equipments,              Please contact us freely if you have any question to our drilling

equipment you received, we will tell you how to solve the problem by email or phone.
