Product Details:
|
| High Light: | core drill rigs,diamond core drilling |
||
|---|---|---|---|

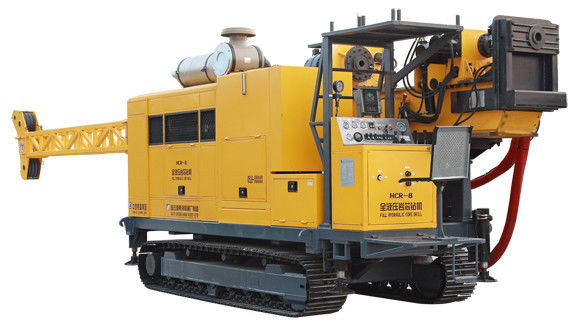

HCR-8 Core Drill Rig Full Hydraulic Drilling Rig With 7200Nm Torque , 264KW/2200rpm
|
Power Unit |
Power |
Cummins 6LTAA8.9-C360 264KW/2200rpm |
|
Drilling Capacity |
BQ |
3000m(9842 feet) |
|
NQ |
2500m(8202 feet) |
|
|
HQ |
2000 m(6561 feet) |
|
|
PQ |
1500 m(4921 feet) |
|
|
Drill Head |
RPM of Spindle |
Three Shifts/ Stepless ChangeThree 0-1250 RPM |
|
Max. Torque of Spindle |
7200 Nm(5307 lbf·ft) at 170 rpm |
|
|
1300 Nm(958 lbf·ft) at 1250 rpm |
||
|
Spindle Diameter |
121 mm(4.76 inch) |
|
|
Max. Lifting capacity of Spindle |
295 kN(66316 lbf) |
|
|
Max. Feeding Power |
152 kN(34170 lbf) |
|
|
Capacity of Main Hoist |
Hoisting force (single wire) |
120kN(26976 lbf) |
|
Steel Wire Diameter |
21.5 mm(0.85 inch) |
|
|
Steel Wire Length |
50 m(164 feet) |
|
|
Capacity of Wireline Hoist |
Hoisting Force (single wire) |
15 kN(3372 lbf) (bare drum) |
|
Steel Wire Diameter |
6.3 mm(0.25 inch) |
|
|
Steel Wire Length |
2800 m(9184 feet) |
|
|
Mast |
Effective Hoisting Height |
9.6 m(31.5 feet) |
|
Mast Adjusting Angle |
0°—90° |
|
|
Drilling Angle |
45º off horizontal to 90ºvertical down
|
|
|
Feeding Stroke |
4700 mm(185 inch) |
|
|
Slippage Stroke |
1100 mm(43 inch) |
|
|
Foot Clamp |
Clamping Scope |
55.5-117.5 mm(2.19-4.63 inch) through hole dia.154mm(6.06 inch) |
|
Mud Pump |
Type |
Reciprocating Pump Triplex Plunger |
|
Model |
BW320 |
|
|
Stroke |
110mm(4.3 inch) |
|
|
Output volume |
320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min) |
|
|
Discharge pressure |
4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi) |
|
|
Others |
Weight |
25000 Kg (55125 lb) |
|
Transport Dimensions (L × W ×H ) |
8300×2400×3500mm (326.8×94.5×137.8 inch) |
