Hole Dia 76mm Core Dia 47.6mm Wireline N Core Barrel Assembly 1800m

HOLE DIA 76MM CORE DIA 47.6MM WIRELINE N CORE BARREL ASSEMBLY 1800M

WireLine N Core Barrel is used in core drilling of boreholes with wireline inner core barrel (WireLine Coring System): drilling of Ø76 mm diameter boreholes up to 1800 m deep in solid, semifractured and fractured rocks of VI-XII drillability category. WireLine core barrel is designed for receiving and preserving of core while drilling and also for separating and lifting of core from the borehole bottom to the surface without lifting of drill string.

Wireline drill tools can lift drill core from drill rods without picking up bits. All the tools include principal parts of the drill tools, overshotassembly, drill rods, holding dog, circle wrench and etc. Their advantages are higher penetration, higher core recovery ratio, longer bit life and lower our ab intensity; and the advantages get more clear with the increasing of hole depth.

WireLine Core Barrel consists of:

• core barrel;
• locking and adapter couplings;
• outer tube;
• landing ring;
• stabilizer.

Inner barrel consists of:

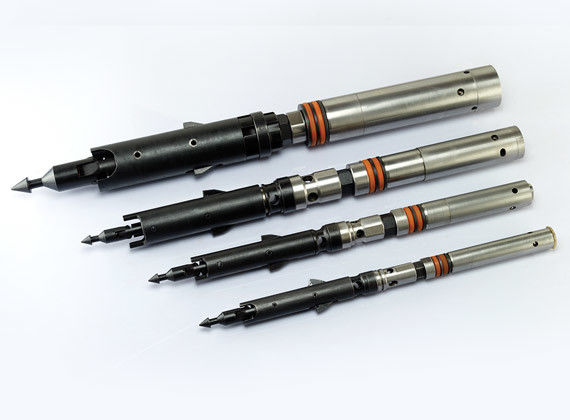

• N head assembly
• core lifter;
• inner tube.

Advantages:

1. Faster coring at greater depths

2. Good stability due to constant diameter of the drill string

3. Excellent hydraulics

4. Good core recovery

Wireline double core barrel consists of:

1. Head Assembly

2. Inner Tube: 1.5m or 3.0m

3. Stop Ring

4. Core Lifter

5. Core Lifter Case

6. Locking Coupling

7. Adapter Coupling

8. Landing Ring

9. Outer Tube: 1.5m or 3.0m

10. Inner Tube Stabilizer

11. Thread Protector

Size Available:

T2 Series: T2-56, T2-66, T2-76, T2-86, T2-101, T2-131

T6 Series: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

Wire line: N, H, P, N3, H3

WF Series: HWF, PWF

MLC Series: NMLC, HMLC

LTK Series: LTK48, LTK60

Chinese Series: P56, P59, P75, P91, PA-110, PA-130, PA-150

Chinese Wireline: S57, S59, S75, S95, S110, S130

Our Services:

Ø Provide the technical design and solutions;

Ø Designing and manufacturing of non-standard equipment;

Ø Professional technical training and guidance on site according to the contract;

Ø Supply accessories at any time;

Ø Tele-technical consulting and services;

Ø Other special technical service according to client's requirements.

We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.

With ISO certificate & quality control.
