Core Drill Rig Parts Wireline Hydraulic Hoisting Winch HXY-4T For Mining

Brand Name:	SINOCOREDRILL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Features:

High Efficiency

Product Name:

Drill Rig Parts

Certificates:

ISO9001: 2000 And API 5DP

Power Type:

Hydraulic

Type:

Hydraulic Wireline Winch

Usage:

Core Drilling Tools

Supply Ability:

Based on Detailed Order

Highlight:

geothermal drilling rigs

drilling rig components

Product Description

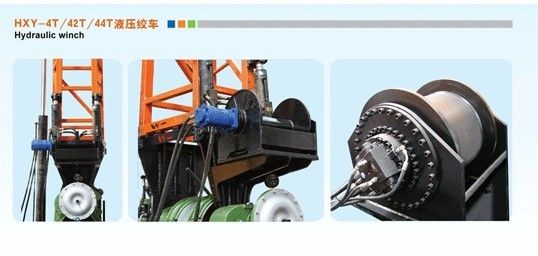

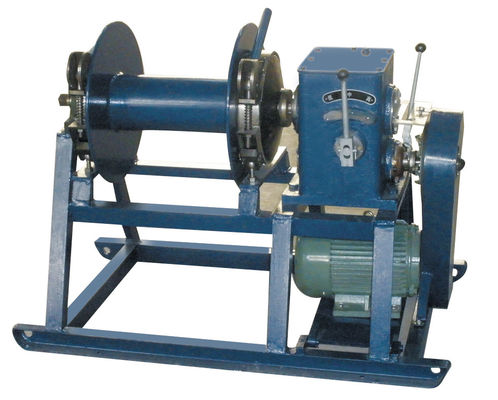

Core Drill Rig Parts Wireline Hydraulic Hoisting Winch HXY-4T For Mining

hydraulic wireline winch is used for lifting the core drilling tools.

Specifications:

1.hydraulic winch manufacturer

2.hoisting winch

3.drilling rig winch

4.Pull force: 500kgs to 50,000kgs

Application:

drill machine, engineering machinery, mining, geological exploration and construction machinery.

Special Features:

♦ One-or two-stage planetary gearboxes, smooth operation and reasonable structure.

♦ Normally closed friction type brake, high braking torque, safe and reliable operating.

♦ Small volume, compact structure and high transmission efficiency.

♦ Radial piston hydraulic motor with long life operating.

♦ Mounting frame is available on request.

♦ Balance valve, shuttle valve, limit switch and other accessories are also available on request.

Max. lifting power (empty drum): 1200 Kg

Max. speed: 164 m/min.

Equipped with spindle driven braking system

Suitable for 900m steel-wire line (dia 14mm)

Grooved drum

Hydraulic requirements : 65 l/min @ 200 bar

ABOUT US:

Sinocoredrill Group Co., Ltd is a Chinese specialist of Geological Exploration tools Manufactory and supplier which is ISO 9001-2000 certified.

Also Sinocoredrill is a professional and leading manufacturer of geological drilling tools, horizontal directional drilling tools in China. Our Main products are Core Drill Rigs, Core Bits, Reaming Shells, Drilling Rods, Cemented Carbide Inserts, and Various Core Drill Tools.

Our Technician and manager groups are all with more than ten years’ experience on Developing, researching and producing exploration products. Owing to our products' excellent performance and very competitive pricing, we successfully minimized our every customer's drilling cost per meter.
