Engineering Machinery 45 Tons Horizontal Directional Drilling Equipment

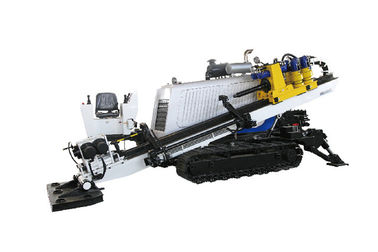

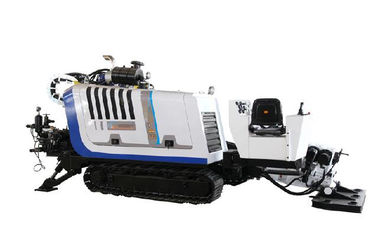

TYZ-45 Horizontal Directional Drilling Rig

Main technical features:

TYZ-45 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. The rig adopts the design concept of short mast, which is light in weight and comfortable to operate. It uses wired remote control for walking. The main supporting parts are well-known products at home and abroad.

2. Cummins EFI diesel engine features low emission and low noise. With the use of internationally advanced control technology, it is not only more suitable for urban construction, but also minimizes the power consumption of the rig under no-load conditions.

3. The power head is rotated by four motors, with large torque and two-step stepless speed regulation function.

4. The push-pull of the power head is driven by a four-motor equipped with a reducer, a rack and pinion transmission, good stability and high efficiency.

5. The mud pump is in the form of hydraulic drive and mechanical variable speed, which can flexibly adjust the pressure and pump volume.

6. The track adopts steel track and rubber shoes, which can bear high load and walk on various roads.

7. Complete supporting drilling tools, using φ83×3000mm drill pipe, and can be customized according to user requirements.

Main technical specifications:
