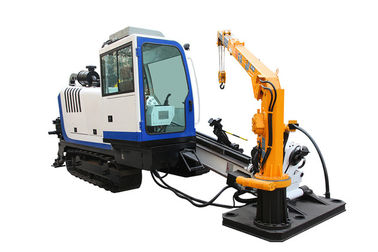

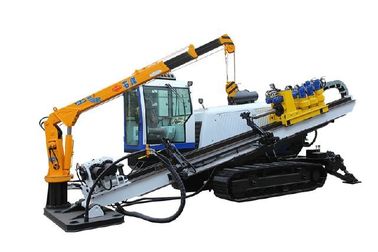

Commins Diesel Engine 45/70T Hdd Drilling Rig

Commins Diesel Engine 45/70T Hdd Drilling Rig
Commins Diesel Engine 45/70T Hdd Drilling Rig Commins Diesel Engine 45/70T Hdd Drilling Rig

Large Image :  Commins Diesel Engine 45/70T Hdd Drilling Rig

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: TYZ-45/70
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable

Commins Diesel Engine 45/70T Hdd Drilling Rig

Type: Horizontal Directional Drilling Machine ,Trenchless Rig Warranty: 1 Year
Power: 194kw , Commins Diesel Engine Pullback Force: 45/70T; 450/700KN
Usage: Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc. Certificate: CE
Color: Customized
High Light:

Diesel Engine rock drilling rig


45/70T horizontal drilling rig

TYZ-45/70 Horizontal Directional Drilling Rig

Main technical features:

TYZ-45/70 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. Both the hydraulic and electrical systems of the drilling rig adopt advanced control technology, which is comfortable to operate and uses wired remote control for walking. The main supporting parts are well-known products at home and abroad.

2. Cummins EFI diesel engine features low emission and low noise. With the use of internationally advanced control technology, it is not only more suitable for urban construction, but also minimizes the power consumption of the rig under no-load conditions.

3. The power head is rotated by four motors, with large torque and two-step stepless speed regulation function.

4. The power head push-pull belt increases force, the maximum push-pull force is 700KN, and the rack and pinion transmission has good stability and high efficiency.

5. The mud pump is in the form of hydraulic drive and mechanical variable speed, which can flexibly adjust the pressure and pump volume.

6. The track adopts steel track and rubber shoes, which can bear high load and walk on various roads.

7. Complete supporting drilling tools, using φ89×4500mm drill pipe, and can be customized according to user requirements.

Main technical specifications:




 Commins 6CTA8.3-C260 194KW(2200r/min)

 Push/pull force




 Spindle rotating speed


 Push / Pullback system

 Rack and pinion 6 gear drive

 I Gear:6m/min ; Gear:12m/min ; Gear:35m/min (4m/min when increasing force)

 Feeding stroke


 Pilot hole diameter


 Drilling angle


 Hydraulic system pressure


 Mud pump max flow

 600 L/min

 Mud pump max pressure


 Rod size

 Φ89 X 4500mm

 Walking speed



 8.5(L) X 2.3 (W) X 2.45 (H) m
