Oil Industry 27000N·M 68T Horizontal Directional Drilling Machine

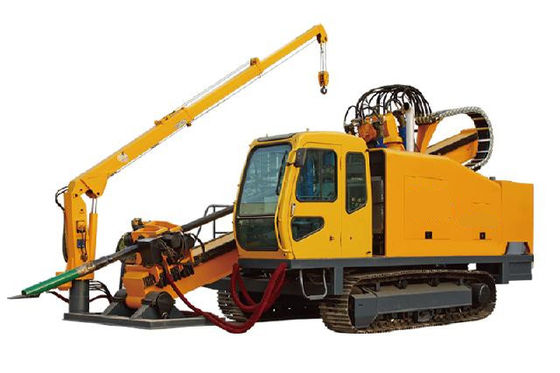

TYZ-68 Horizontal Directional Drilling Rig

Main technical features:

TYZ-68 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. The drilling rig is beautiful in appearance, the whole machine is driven by full hydraulic pressure, the wired remote control mode is adopted for walking, and the main supporting parts are selected from well-known domestic and foreign brands.

2. The low-emission and low-noise characteristics of famous diesel engines, combined with the use of internationally advanced control technology, are not only more suitable for urban construction, but also minimize the power consumption of the rig under no-load conditions.

3. Power head rotation is driven by dual low-speed high-torque motors, and has two-step stepless speed regulation function.

4. The push-pull of the power head is driven by a four-motor equipped with a reducer, and is driven by a rack and pinion, which has good stability.

5. Can be equipped with wireless and wired guidance devices, use.

6. The mud pump is in the form of hydraulic drive and mechanical variable speed, which can flexibly adjust the pressure and pump volume.

7. Complete supporting drilling tools, using φ102×5000mm drill pipe, and equipped with 2T crane.

Main technical specifications:
