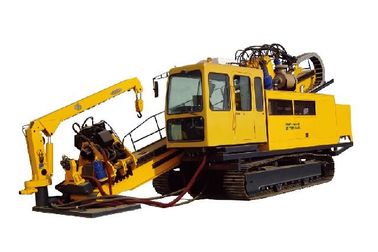

Crawler 60000N·M 120T Horizontal Directional Drilling Rig

Crawler 60000N·M 120T Horizontal Directional Drilling Rig
Crawler 60000N·M 120T Horizontal Directional Drilling Rig

Large Image :  Crawler 60000N·M 120T Horizontal Directional Drilling Rig

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: TYZ-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable

Crawler 60000N·M 120T Horizontal Directional Drilling Rig

Description
Type: Horizontal Directional Drilling Machine ,Trenchless Rig Warranty: 1 Year
Power: 390kw , Weichai Diesel Engine Pullback Force: 120T; 1300KN
Usage: Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc. Certificate: CE
Color: Customized
Highlight:

120T horizontal directional drilling machine

,

60000N·M water well drilling rig

120T 60000N·M Horizontal Directional Drilling Rig ,390KW High Power Crawler

Main technical features:

TYZ-120 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. The drilling rig adopts world-class hydraulic products. The hydraulic circuit of the whole machine adopts a closed (push-pull and slewing) circuit and an open (auxiliary circuit) load-sensing circuit. The efficiency is high.

2. The operation valve group adopts electric control manual cooperation, and the main control valve adopts imported American Sao valve, which has high reliability.

3. The drilling rig parameter display adopts the intuition pointer and electronic instrument to cooperate, and the drilling rig pressure, torque, speed, push-pull force and other parameters are clear at a glance.

4. The power head rotation is driven by imported French Poclain double low-speed high-torque motor, and is equipped with two-step stepless speed regulation function, the main shaft floats, which is conducive to protecting the drill rod thread.

5. The power head push-pull adopts four sets of imported American Sao motor and Dynamite reducer combined drive, with rack and pinion transmission, good stability.

6. Supporting vehicle operation room, heating and cooling air conditioner, comfortable working environment and convenient operation.

7. The distance between the calipers and shackles that hold the shackle is adjustable, the shackle is automatically centered, the gripper moves all the way, and the shackle is accurate, stable and reliable.

8. Using imported South Korean Doosan reducer, with strong power and strong climbing ability.

Main technical specifications:

 ITEM

 Specification

 Engine

 Weichai 390KW 2100r/min

 Push/pull force

 1300KN

 Torque

 60000N·m (45r/min)

 30000N·m (90r/min)

 Spindle rotating speed

 0-45/0-90r/min

 Crane

 3.2T

 Drilling angle

 8-16°

 Mud pump max flow

 1000 L/min

 Mud pump max pressure

 8MPa

 Rod size

 5''

 Max climbing angle

 25°

 Walking speed

 2-4Km/h

 Size

 14.5(L) X 3.1 (W) X 2.85 (H) m

 Weight

 30T
