HDD 200t 390kw Horizontal Directional Drilling Rigs

Brand Name:	SINOCOREDRILL
Model Number:	TYZ-200
MOQ:	1
Price:	Negotiable
Payment Terms:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Type:

Horizontal Directional Drilling Machine ,Trenchless Rig

Warranty:

1 Year

Power:

390kw , Weichai Diesel Engine

Pullback Force:

2000T; 2100KN

Usage:

Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc.

Certificate:

Color:

Customized

Highlight:

hdd drilling equipment china

directional drill rig china

horizontal drilling equipment china

Product Description

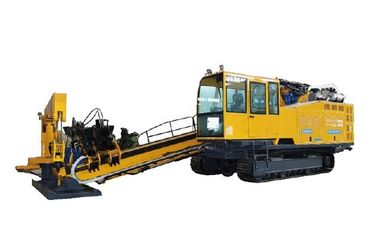

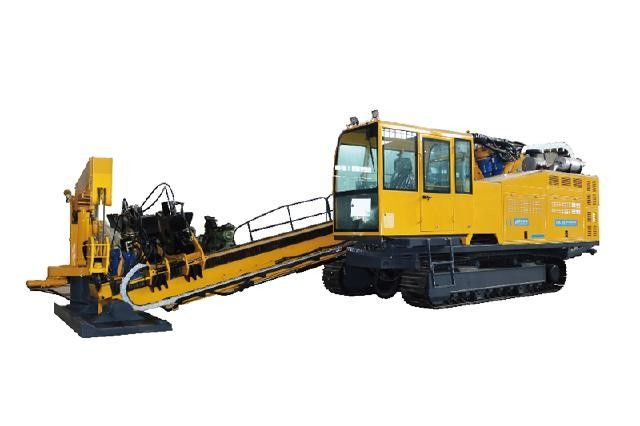

200T 60000N·M Horizontal Directional Drilling Rig ,390KW High Power Crawler

Main technical features:

TYZ-200 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

The drilling rig adopts world-class hydraulic products. The hydraulic circuit of the whole machine adopts a closed (push-pull and slewing) circuit and an open (auxiliary circuit) load-sensing circuit. The efficiency is high.
The operation valve group adopts electric control manual cooperation, and the main control valve adopts imported American Sao valve, which has high reliability.
The drilling rig parameter display adopts the intuition pointer and electronic instrument to cooperate, and the drilling rig pressure, torque, speed, push-pull force and other parameters are clear at a glance.
The power head rotation is driven by two sets of imported French Poclain double low-speed high-torque motors, and is equipped with two-step stepless speed regulation function. The main shaft floats, which is conducive to protecting the drill rod thread.
The push-pull of the power head is driven by a six motor equipped with a reducer, and is driven by a rack and pinion, which has good stability and high efficiency.
Supporting vehicle operation room, heating and cooling air conditioner, comfortable working environment and convenient operation.
The distance between the calipers and shackles that hold the shackle is adjustable, the shackle is automatically centered, the gripper moves all the way, and the shackle is accurate, stable and reliable.

Main technical specifications:

ITEM	Specification
Engine	Weichai 390KW 2100r/min
Push/pull force	2100KN
Max push & pull speed	6m/min (Gear Ⅰ)
	12m/min (Gear Ⅱ )
	36m/min (Gear Ⅲ)
Torque	60000N·m (Gear Ⅰ) 30000N·m (Gear Ⅱ)
Spindle rotating speed	0-40/0-80r/min
Crane	3.2T
Drilling angle	8-16°
Mud pump max flow	1500 L/min
Mud pump max pressure	10MPa
Rod size	6m
Max climbing angle	30°
Walking speed	2-4Km/h
Size	13(L) X 2.7 (W) X 3 (H) m
Weight	36T
