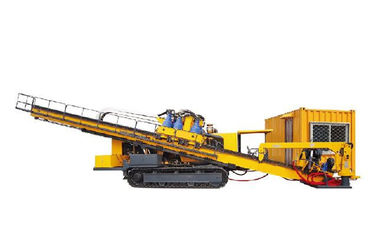

Weichai Diesel Engine Crawler 400t Hdd Rig

Weichai Diesel Engine Crawler 400t Hdd Rig
Weichai Diesel Engine Crawler 400t Hdd Rig

Large Image :  Weichai Diesel Engine Crawler 400t Hdd Rig

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: TYZ-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable

Weichai Diesel Engine Crawler 400t Hdd Rig

Description
Type: Horizontal Directional Drilling Machine ,Trenchless Rig Warranty: 1 Year
Power: 2 X 275kw , Weichai Diesel Engine Pullback Force: 400T; 4000KN
Usage: Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc. Certificate: CE
Color: Customized
High Light:

400T hdd rig

,

Crawler hdd rig

,

Weichai diesel engine hdd rig

400T 98000N·M Horizontal Directional Drilling Rig ,2 x 275KW High Power Crawler

Main technical features:

TYZ-400 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. The drilling rig uses the world's first-class hydraulic products. The hydraulic circuit of the whole machine adopts a closed (push-pull and slewing) circuit and an open (auxiliary circuit) load-sensing circuit. The efficiency is high.

2. Adopt dual power system to meet the needs of different working conditions, can flexibly realize dual-machine or single-machine work, energy saving and consumption reduction, one set of hydraulic system or power failure, another set of systems can work normally (unchanged capacity, reduced speed slow).

3. The operation valve group adopts electric control manual cooperation, and the main control valve adopts imported American Sao valve, which has high reliability.

4. The rig parameter display adopts the intuition pointer and electronic instrument to cooperate, and the parameters of the rig pressure, torque, speed, push and pull force are clear at a glance.

5. The power head rotation is driven by two sets of imported French Poclain double low-speed high-torque motors, and is equipped with two-step stepless speed regulation function. The main shaft floats, which is conducive to protecting the drill rod thread.

6. The power head push-pull is driven by a six-motor equipped with reducer, gear rack transmission, good stability and high efficiency.

7. Supporting vehicle-mounted operation room, heating and cooling air conditioner, comfortable working environment and convenient operation.

8. The distance between the calipers and shackles holding the shackle is adjustable, the shackle is automatically centered, the gripper travels all the way, and the shackle is accurate, stable and reliable.

Main technical specifications:

 ITEM

 Specification

 Engine

 Weichai 2 x 275KW 1900r/min

 Push/pull force

 4000KN

 Max push & pull speed

 7.5m/min (Gear Ⅰ)

 32m/min (Gear Ⅱ )

 Torque

 98000N·m (Gear Ⅰ)

 49000N·m (Gear Ⅱ)

 Spindle rotating speed

 0-42/0-84r/min

 Crane

 3.2T

 Drilling angle

 8-16°

 Mud pump max flow

 2200 L/min

 Mud pump max pressure

 10MPa

 Rod size

 5'' 5-1/2''

 Max climbing angle

 30°

 Walking speed

 2-4Km/h

 Size

 15(L) X 3.15 (W) X 3.4 (H) m

 Weight

 52T
