Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey
All Category

Core Drill Rig

Diamond Core Bit

Reaming Shells

Wireline Core Barrel

Wireline Drill Rod

Horizontal Directional Drilling Rigs

Water Well Drilling Rig

CBM Drilling Rig

HDD Drilling Tools

Tungsten Carbide Inserts

Drilling Mud Pumps

Top Drive Oil Rig

Cone Penetration Test Apparatus

Underground Drill Rig

Plastic Pipe Welding Machine

Solar Photovoltaic Products

Rotary Air Blowers
Contact Us
Ms. Amelia
amelia@sinocoredrill.com
86-18051930311
WeChat 18051930311
Contact Now

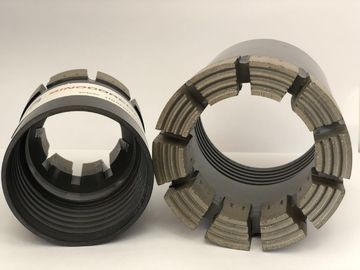

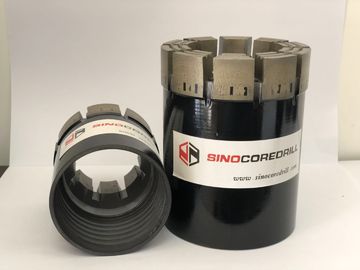

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey
  • name
  • name
  • name

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey

Brand Name: SINOCOREDRILL
Model Number: BWL NWL HWL PWL
MOQ: N/A
Packaging Details: Sea Delivery Package
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Features:
High Penetration Rate, High Speed,High Performance
Product Name:
Diamond Drilling Tools
Working Layer:
6mm, 8mm,10mm,12mm
Use:
Mineral Exploration Industry
Siz:
BW , NW , HW , PW / NQ , HQ , PQ
Type:
Impregnated Bit
Supply Ability:
Based on Detailed Order
Highlight:

core hole drill bits

,

diamond core drill bit

Product Description



Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey





Impregnated Bit The main technical parameters of impregnated diamond core bits include diamond type, size, concentration and diamond grade, matrix hardness and crown shapes etc. If users can make rational selections,according to the rock formations, they can get satisfied drilling performance on various formations with different hardness. To avoid excessive bit wear, diamond tungsten carbide inserts could be used on both sides of the waterway and the larger diamonds are used on the inside and outside.

The impregnated diamond core bit emerged as the most commonly used type in the mineral exploration industry.



Specifications



1. High quality synthetic diamond powders
2. PQ HQ NQ BQ etc.
3. 6mm, 8mm,10mm,12mm working layer
4. Patented matrix formulation





Diamond core bit



Diamond Core Bits are widely used in mineral exploration industry and geological survey. We have impregnated diamond type, surface set type, electroplated diamond type, T.C. type, PCD type and TSP type in following sizes. Welcome to contact us for inquiry.









Features:



• Significantly outperforms the successful Series range in drilling speed and bit life.
• Protects the diamond from oxidation and surface degradation.
• Inhibits the premature "pull-out" of the diamond.
• Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.





Size Available:



Q series: AQ, BQ, NQ, HQ, PQ, BQ3, NQ2, NQ3, HQ3, PQ3...

T2 series: T2-46, T2-56, T2-66, T2-76, T2-86, T2-101

T6 series: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S series: T6S-76, T6S-86, T6S-116, T6S-131, T6S-146

B series: B36, B46, B56, B76, B86, B101, B116, B146

WF series: HWF, PWF, SWF, UWF, ZWF

WG series: EWG, AWG, BWG, NWG, HWG

WM series: EWM, AWM, BWM

WT series: RWT, EWT, AWT, NWT, HWT

Others: NMLC, HMLC, LTK48, LTK60, EWK, AWK.





Note:



Impregnated Diamond Core Bit:



Impregnation Depth: 6-12mm; 6mm is "Chen Guang" standard depth

Bit Crown Profiles: "W" profile, "Flat" profile, "Semi-round" profile, "Cross" profile...





Surface Set Diamond Core Bit:



Bit Crown Profiles: "Semi-round" profile, "4 Steps" profile.. "7 Steps" profile..


  • Impregnated Bits Matrix Selection Guide





Formation Hardness



Abrasiveness



Rock Type



Bit Matrix Range

40~

45

35~

40

35~

40

30~

35

30~

35

25~

30

25~

30

20~

25

20~

25

15~

20

1

2

3

4

5

6

7

8

9

10

Soft

Medium

Clay, Shale,

very soft Sandstone,

marl argillite Volcanic tuff, etc.

























Medium-Hard

Low



Medium



High

Limestone,

rhyolite lava,

andesite marble,hard sandstone,limonidolomite,schist,

Etc.





























































Hard

Low



Medium



High

Basalt,gneiss,granodiorite amphibololite,pegmatite dianase,

Etc.





























































Very Hard

Low



Medium



High

Hard granite, quartzitic

Conglomerate,quartize hard slate,rhyolite,

Etc.

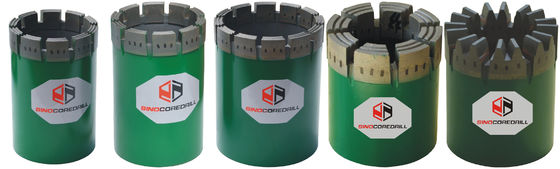

Bits Crown Profiles

     Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey 0           Channel flushing (CF)

                                                      Ø  Preferable in competent and semi-broken rock

                                                      Ø  Suitable for mixed formations containing brokenand competent zones.

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey 1          Extended Channel flushing (ECF)

                                           Ø  Preferable in competent and semi-broken rock

                                           Ø  Suitable for mixed formations containing broken and competent zones.

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey 2            Wedge (pie shaped)

                                             Ø  Superior flushing capability

                                             Ø  Improved productivity

                                             Ø  Preferable in abrasive or broken rock.

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey 3     Turbo

                                      Ø  High productivity

                                      Ø  Suitable for competent formations

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey 4  Face discharge (FD)

                                    Ø  Designed to minimize flushing of core sample

                                    Ø  Suitable for broken/granular formations.

Impregnated Diamond Core Drill Bits 6mm 8mm 10mm 12mm For Geological Survey 5
