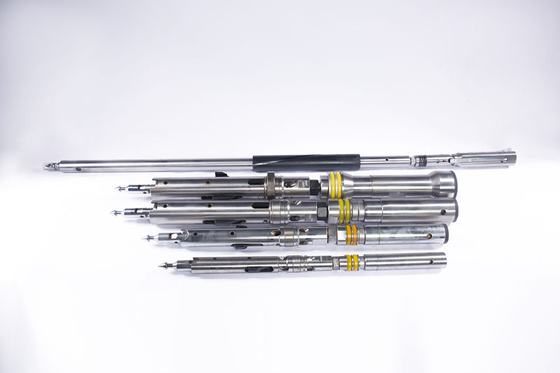

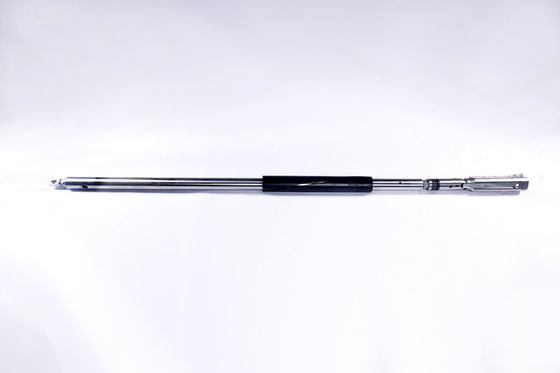

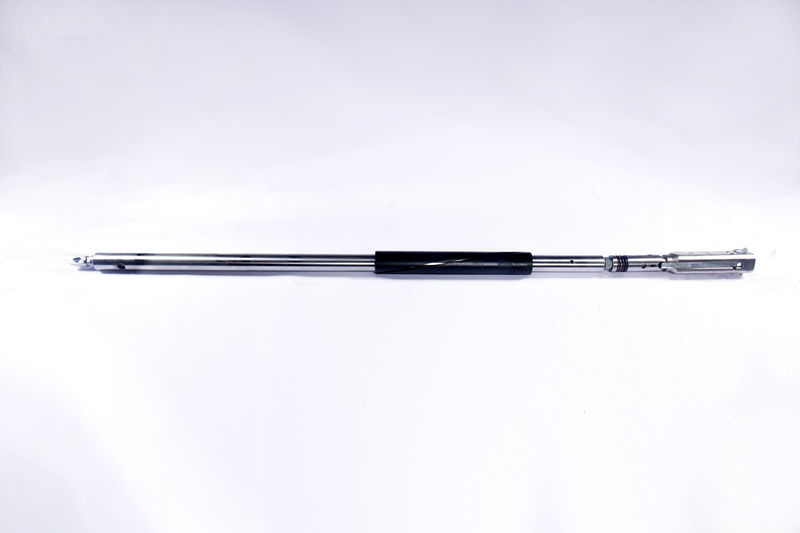

Wire-line core drilling tools OVERSHOT can lift core from drill rods without picking up coring system.A complete set of wire-line drill tools include:Core barrel assembly, overshot assembly, drill rods, holding dog, hoisting plug, circle wrench etc.It has some advantages such as high penetration rate, high core recovery ratio, long bit life and lower labour intensity.The advantages can get more clear with the increasing of drill hole depth.

We could supply BQ Core Barrel, NQ Core Barrel, HQ Core Barrel, PQ Core Barrels,

Specifications

Wireline drilling tool
1.ISO certificate tool
2.API standard tool
3.Drilling NQ.HQ etc.bit
4.Good After sales service

Wireline Q series Core Barrel

Wireline drilling is the special method of removing the core.

When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time.

With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.

1.5m and 3.0m length core barrels are avaiable.

We will feel happy to give you a quotation upon receipt of your detailed requirements

Core barrel introdution:

 Used in loose, broken stratigraphic or coal extraction and protect rock (mine) heart of drilling tools.

Double core tube and tube has outer pipe, rinses through joint between the internal and external tube water flow to the bottom of the hole, protecting cores from rinses washouts. Double core tube has double motion and single movement two kinds. Double motion and core tube is internal and external core tube following bit and drill stem rotation, it in no serious loose or broken strata.

Single movement double core tube internal and external tube has bearing isolation, pipe outer pipe driven only pick up bit rotation, and broken rock tube does not rotate, avoid to core friction, vibration, etc., with mechanical damage, so it in serious loose fractured formations.these, can be well protected cores.

Use double deck core tube take core, bits need to use wall thickness of the alloy drill or diamond bits.

Due to the rock drill contact surface area increased and the lip use double deck core tube than ordinary core tube drilling efficiency to reduce. In the ledge, coal, in order to guarantee rock (mineral) heart take rate, rules must be use double deck core tube coring. More complex double core tube, except to finish single movement, in addition, aluminum, steel tube placed plastic or qualitative buckled half close tube, have a better protection of the core role.

Double core tube card broken cores and seal block within the next port, the core tube by the drill is placed in the core card fault device (fern, card spring, claw reed, etc.) to finish.
