Wireline series Core Barrel stop ring BQ NQ HQ PQ NQ3 HQ3

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Supply Ability:

Based on Detailed Order

Highlight:

wireline coring system

wireline core drill parts

Product Description

Core lifter core lifter case and stop ring

1. available in all standard drilling sizes

2. hardened alloy as raw material,it can serve in a long lifespan

3. core lifters are divided into slotted and flutted .They have the advantages of good springness and long life.

4.Our company produces all kinds of core lifters ,which have the merits of good springness and long life.The core lifter pedestal experiences salt bath quenching which makes it good stability.

Specifications

Widely used core lifter
high quality and long life service
professional production
whole-set drilling tools
High quality and chucking safe on drilling

The drilling fluid circuit operates withinthe available annular areaprovided.More specifically, after travelling through the drill rods, the fluid enters the core barrel.

There it is channelled between the inner and outer tubes, exiting via the throat of the diamond bit, and back out between the outer tube and bore hole wall to the collar .

At the bit end of the inner tube, core lifter case adjustment and core lifter selection are of great importance. The core lifter case needs to be placed close enough to the throat of the bit to allow for efficient core breakage, butundesirable increase in fluid pressureand/or sample washing from the drilling fluid.

By design, the tapered core lifter slides along the inside of the core lifter case, wedging and securing itself onto the core during core recovery and breaking.

Model	ID(mm)	OD(mm)
HQ3 core lifter	60.7	66.5
HQ core lifter	62.67	68.94
HQ3 core lifter case	62.7	71.6
HQ core lifter case	65.56	73.23
PQ3 core lifter	82.56	91.28
PQ core lifter	84.53	91.28
PQ3 core lifter case	86.8	92.5
PQ core lifter case	86.8	96.4

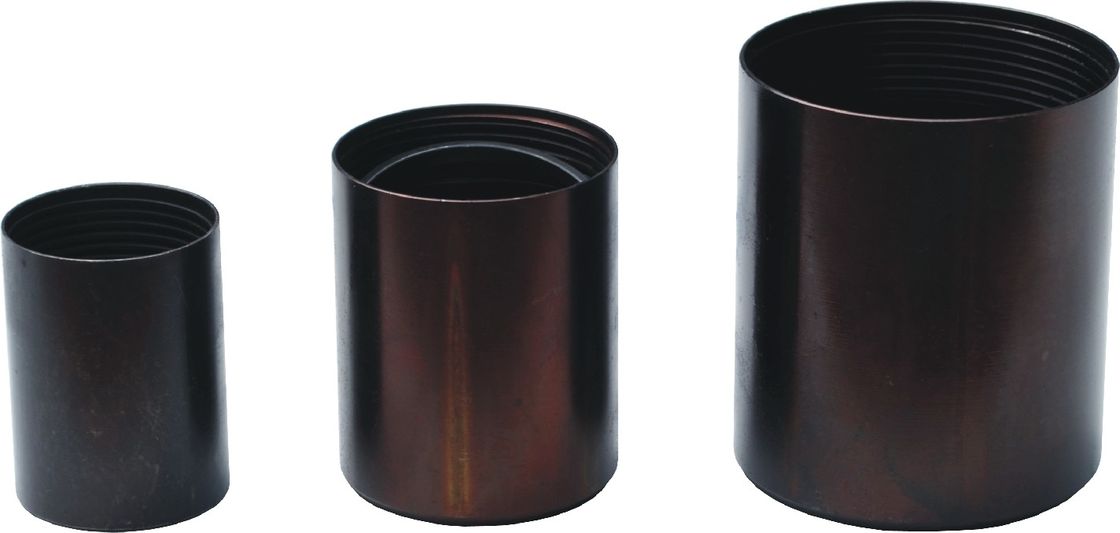

Wireline series Core Barrel stop ring BQ NQ HQ PQ NQ3 HQ3 0
