Alloy Steel Wireline Drill Rod Tube Casing Tubes Core Tubes (BW,NW,HW)

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Supply Ability:

Based on Detailed Order

Highlight:

drill extension rod

metric drill rod

Product Description

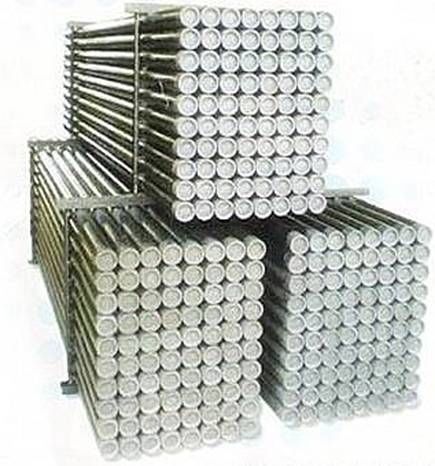

Alloy Steel Wireline Drill Rod Tube Casing Tubes Core Tubes (BW,NW,HW)

Our drill rods are all manufactured by CNC machines. They're made of high quality alloy steel.All our drill rods are heat-treated. Our rods will be also suited to drill deep holes. From drillers' feedback, our rods have drilled up to 2000 meters depth.

Specifications:

1. Increased penetration rate
2. Longer service life
3. Lower cost
4. Excellent cemented carbide
5. AW,BW, NW, PW, HW

Size Available:

Wireline Series:      B, N, H, P
"WJ" Design:          AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design:            RW, EW, AW, BW, NW, HW
Metric Series:         33, 42, 50

We also can produce various sizes of casing tubes.

Size Available:

"W" Design:       RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW/HWT, PWT
Metric Series:    46, 56, 66, 76, 86, 101, 116, 131, 146
"X" Design:        RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX

All Chinese Sizes.

No	ITEM	OD	ID	Thread type	weight (kg/m)
1	Φ73	73.5	65.5		7
2	Φ89	89	81		9.4
3	Φ108	108.5	99.5		12
4 5	Φ127 Φ146	127.5 146.5	118 137	China-standarded strip connectors	14 18
6	Φ168	168	154		28
	Φ178	178	164		30
7	Φ194	194	181		33

Technical parameters:

Description	OD	OD	Weight
AW 3.0m(10') CASING	57.10(mm)	48.40(mm)	17 (kg/3m)
AW 1.5m(5') CASING	2.25(in)	1.91(in)	38(Ib/10ft
BW 3.0m(10') CASING	73.00(mm)	60.30(mm)	31.30(kg/3m)
BW 1.5m(5') CASING	2.88 (in)	2.38(in)	70 ( Ib/10ft)
NW 3.0m(10') CASING
NW 1.5m(5') CASING	88.90(mm) 3.5(in)	76.20(mm) 3.00 (in)	38.4(kg/3m) 86(lb/10ft)
NW 1.0m(2') CASING
HW 3.0m(10') CASING
HW 1.5m(5') CASING	114.30(mm) 4.50(in)	101.60(mm) 4.00 (in)	52.20(kg/3m) 117.00(lb/10ft)
HW 1.0m(2') CASING
HWT 3.0m(10') CASING
HWT 1.5m(5') CASING	114.30(mm) 4.50(in)	101.60(mm) 4.00 (in)	52.20(kg/3m) 117.00(lb/10ft)
HWT 1.0m(2') CASING
PW 3.0m(10') CASING
PW 1.5m(5') CASING	139.70(mm) 5.50(in)	127.00(mm) 5.00 (in)	64.30 (kg/3m) 144.00(lb/10ft)
PW 1.0m (2') CASING

Customer's special requirement is also available.
