XY-42A Spindle type core drilling rig

XY-42A Spindle type core drilling rig
XY-42A Spindle type core drilling rig XY-42A Spindle type core drilling rig

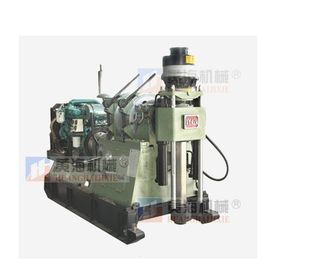

Large Image :  XY-42A Spindle type core drilling rig

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

XY-42A Spindle type core drilling rig

Description
High Light:

Hydraulic drill rig

,

core drill rigs

Spindle Type Core Drilling Rig (XY-42A)

XY-42A is a kind of core drill driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.

XY-42A Spindle type core drilling rig 0

XY-42 core drill is the improved product based on XY-4 core drill. Besides all the facilities  of XY-4,  it is also extended the using range. The core drill is mainly adapted to suit for core  drilling with diamond bit or tungsten-carbide tipped bit. It can also be used for exploration  of engineering geology and hydrological drilling,  and even for large hole foundation stake  drilling. In addition to china,  it is also sold in South-east Asia and Africa.

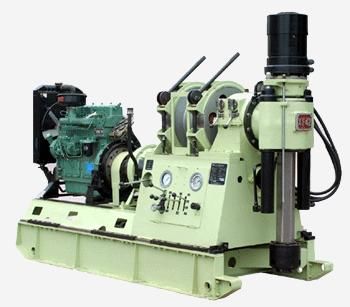

XY-42A Spindle type core drilling rig 1

XY-42 Drilling Machine Specification



 Drilling depth

 Core drilling

 500--1100m

 Foundation stake drilling

 100m

 Hydrological drilling

 150m

 Drilling angle

 0-360°

 Max. torque

 3.2kN.m

 Spindle stroke

 600mm

 I.D of spindle

 92mm

 Max. Lifting capacity of spindle

 80kN

 Max. Pressuring force of spindle

 60kN

 Max. Hoisting force

 30kN

 Power

 30kW

 Dimensions(L×W×H)

 2730×1100×1860mm

 Weight(without power unit)

 1800kg
