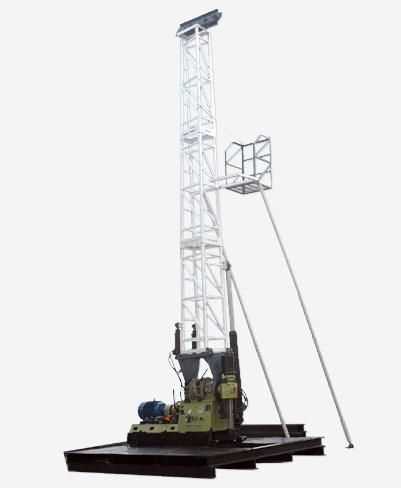

XY-42T Spindle type core drilling rig

XY-42T Spindle type core drilling rig
XY-42T Spindle type core drilling rig

Large Image :  XY-42T Spindle type core drilling rig

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

XY-42T Spindle type core drilling rig

Description
Highlight:

core drill rigs

,

diamond core drilling





HXY-42T SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER

XY-42T core drill rig, combining rig with into one unit,is kind of drilling equipment integrated the drill rig and mast-type , with the function of ’s hydraulic lifting and lowering. The rig is simple in structure, reasonable in design, light in weight, easy for operation; it has a wide range adjusting angle. It is especially suitable for great slope angle drilling.

XY-42T Spindle type core drilling rig 0



  1. With eight rotary speeds and reasonable ranges of speed (please see the list of spindle speed). Max. torque 3.5 KN·m (2580 lbf·ft) ( while with lower rotary speed of spindle).
  2. With large spindle I.D. 93mm (3.66 inch), the rig is driven by hydraulic double cylinders with much longer stroke up to 600mm (23.62 inch). The rig is suitable for various drilling technologies to improve drilling efficiency.
  3. In two reverse speeds, it is suitable to deal with faulties.
  4. With the features of reasonable power and lower oil temperature, it adopted simplex hydraulic gear pump for oil supplying.
  5. Double-action hydraulic chuck in powerful clamping force.
  6. In light weight, easy disassembling (into nine parts), and convenient for maintenance and repair, due to the advantages of compact structure and reasonable layout.
  7. It steadies in the high drilling speed because of its smooth movement and low centre of gravity.
  8. Fitted with measuring scale for your good knowledge of the drilling condition at the bottom of the hole; every handle can be operated nimbly and reliablely.

The Main Parameter of Drill Rig



Max. Torque

3.2KN·M

Spindle Stroke

600 mm

I.D. of Spindle

92 mm

Max. Lifting Capacity of Spindle

80 KN

Max. Pressure of Spindle

60 KN

Max. Hoisting Power

30 KN

Power of Motor

30 KW

The Parameter of Mast



Height

10 Meters

Area of Base

4×4 M2

Area of Top Level

0.46×0.52 M2

Number of Pulley

5 or 3 pieces

Max. Load of

100 KN

Load of Movable Operation Platform

800 N

Adjusting Angle of

45-90°
