Name: XY-44T Spindle type core drilling rig
Brand: Jiangsu Sinocoredrill Exploration Equipment Co., Ltd
Price: 769.00 USD
Availability: InStock

Home Products Core Drill Rig

XY-44T Spindle type core drilling rig

Product Details:

Place of Origin:	China
Brand Name:	SINOCOREDRILL
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	N/A
Packaging Details:	Sea Delivery Package
Delivery Time:	30Days
Payment Terms:	T/T
Supply Ability:	Based on Detailed Order

Contact Now

Detailed Product Description

Highlight:

Hydraulic drill rig

diamond core drilling

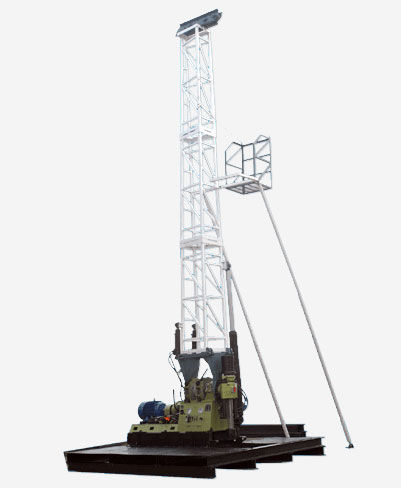

HXY-44T SPINDLE TYPE CORE DRILLING RIG INTEGRATED WITH MAIN MACHINE AND TOWER

The XY-44T core drill rig, combining rig with into one unit,is kind of drilling equipment integrated the drill rig and mast-type , with the function of ’s hydraulic lifting and lowering. The rig is simple in structure, reasonable in design, light in weight, easy for operation; it has a wide range adjusting angle. It is especially suitable for great slope angle drilling.

The Specification for XY-44T Core Drill Rig:

XY-44T Spindle type core drilling rig 0

Max. Torque	3.2KN·M
Spindle Stroke	600 mm
I.D. of Spindle	93 mm
Max. Lifting Capacity of Spindle	120 KN
Max. Pressure of Spindle	90 KN
Max. Hoisting Power	45 KN
Power of Motor	37 KW

The Parameter of Mast:

Height	10 Meters
Area of Base	4×4 M2
Area of Top Level	0.46×0.52 M2
Number of Pulley	5 or 3 pieces
Max. Load of	100 KN
Load of Movable Operation Platform	800 N
Adjusting Angle of	45-90°
