I. General Introduction


1. Overall Unit Features:

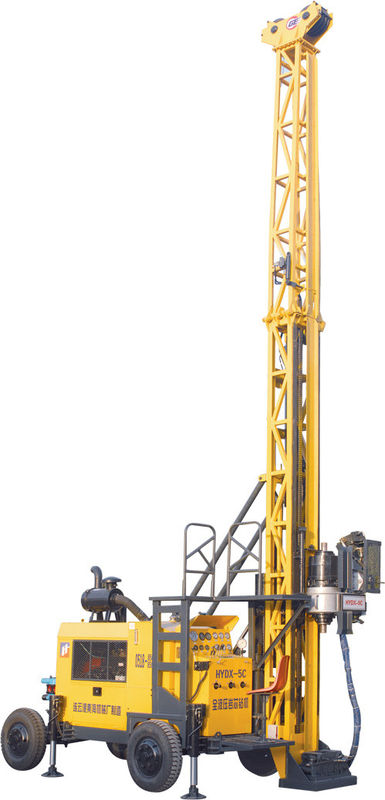

The drill rig HYDX-5C Full Hydraulic Drilling Rig  adopts full hydraulic driving, tire trail-type.

The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure.

The drill head is fed and driven with a system connecting the hollow spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance.

The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.





1) Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and the key hydraulic spare parts are all adopted famous brands products at home and abroad.


2) High Efficiency With big torque, high power unit allocation and with reasonable structure design and advanced  operation method and 6 meters(19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.


3) Environmental Protection
With lower polluting emission of diesel engine, professional noise reducing design, the drill rig is fully suitable for urban operation and performance.


4) Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level.
With an elegant outline, compact structure, reliable performance and operation easily, it is the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.



2. Field of Application


HYDX-5C Type Drill Rig is mainly used for inclined and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and in other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
Proper use and reasonable maintenance could guarantee the best operation and performance with availability and long working life.

Therefore, all customers should follow the manual for operation and maintenance strictly.
All the loss, such as equipment damage and personal injury and etc., from the following causes, the customers should be responsible for their own action.
·Any application beyond those described in this manual.
·Any change to the equipment presumptuously on their own. ·Any operation or performance contrary to the safety instruction and regulation and/or any use not following the requirements of the manual. ·Any maintenance to the overall machine and to each component against the requirements.



II. Main Performance Parameters of HYDX-5C
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.



Diesel Engine

Model

Cummins 6CTA8.3-C195 (turbocharged and charge water cooled)

Displacement

8.3L (2.19 US Gallons)



Power

145kW (195HP)



Rated RPM(Factory setting)

2200rpm



BQ

1500 m(4920 feet)

Drilling Capacity

NQ

1300 m(4264 feet)

HQ

1000 m(3280 feet)



PQ

680 m(2230 feet)

Drill Head

Rotation Motor

Double Hydraulic Motors –variable and Reversible Maker:SAUER-DANFOSS

RPM

Two Shifts/ Stepless Change 0-1145 RPM

Ratios

1st 8.776:1 2nd 2.716:1

Head Opener

sidewise sliding way with hydraulic drive

Hydraulic Chuck(PQ)

Hydraulically opened,  Disc Spring Clamping,   Normally Closed Type Axial Holding Capacity  of 222 400 N





Max. Torque

4650 N·m(3427 lbf·ft)

Hold Diameter

121 mm(4.76 inch)

Max. Lifting capacity of Spindle

150 kN(33720 lbf)

Max. Feeding Power

75 kN(16860 lbf)

Primary Pump Package

Axial Piston variable  displacement Triplex pump  for driving of Drill Head Rotation,  Main Hoist,   Mud Pump & Line Winch.

Maker: DANFOSS 1st

Pump:150LPM at 28.5MPa 2nd

Pump:120LPM at 25MPa 3rd

Pump:  102 LPM at 25MPa

Hydraulic Tank

Capacity

420 L (111 US Gallons)



Hoisting Speed (single wire)

38-70m/min(bare drum)

Capacity of Main

Hoisting force (single wire)

77kN(17310 lbf)

Hoist

Steel Wire Diameter

18 mm(0.71 inch)



Steel Wire Length

50 m(164 feet)



Hoisting Speed (single wire)

164m/min (bare drum)

Capacity of Wireline

Hoisting Force (single wire)

12 kN(2698 lbf) (bare drum)

Hoist

Steel Wire Diameter

6 mm(0.24 inch)



Steel Wire Length

1500 m(4920 feet)



Mast Height

11 m(36 feet)



Mast Adjusting Angle

0°—90°



Drilling Angle

45°—90°

Mast

Feeding Stroke

3800 mm(150 inch)

Slippage Stroke

1500 mm(59 inch)



Feed Pull

15000kg(33075 lb)



Feed Thrust

7500kg(16538 lb)



Rod Pull

3m or 6m(9.84feet or 19.68feet)

Mud Pump

Type

Reciprocating Pump  Triplex Plunger

Model

BW250

Stroke

100mm(3.9 inch)

Output volume

250, 145,  90,  52 L/min  (66,  38,  24,  14 US Gallons/min)





Discharge pressure

2.5,  4.5,  6.0,  6.0 Mpa (363,  653,  870,  870 psi)

Foot Clamp

Clamping Scope

55.5-117.5 mm(2.19-4.63 inch)  through hole Ф154mm(6.06 inch)



Weight

10000 Kg(22050 lb)

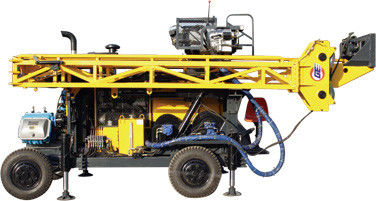

Working Dimensions (L × W ×H )

5652×2130×10200mm  (222.5×83.9×401.6 inch)

Other

Transport Dimensions (L × W ×H )

5970×2130×2730mm  (235×83.9×107.5 inch)

Transport Way

Tire type
