I. A General Introduction

HYDX-6 Hydraulic Core Drilling Rig, an up-to-date new product , is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world. HYDX-6 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.



1. Main Features of HYDX-6 Full Hydraulic Drilling Rig:

HYDX-6 Full Hydraulic Drilling Rig , equipped with tracks, has a hydraulic driving system. It owns a brief but advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears. With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable. The mast is adjustable in the range from 0° to 90° to ensure a proper hole-drilling angle. The low gravity center of the rig promises a steady operation. And it provides the operators with a convenient and comfortable working circumstance with a wide view. In short, the rig has a beautiful outline and shows a people-oriented design idea.




1) Reliable Quality
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.


2) High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long
(19.7 feet) drilling rod guarantee the high operation efficiency of the rig.



3) Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which makes the rig proper to be operated in urban areas.


4) Energy Saving
force and heat discharge to the minimum extent.
HYDX-6 has an outstanding external appearance, a compacted structure, a reliable function, and a flexible operating system. All these factors have made the rig the best choice among the same products in both domestic and abroad markets.



2. Application Range


HYDX-6 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.




II. Main Performance Parameters of HYDX-6

The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.



Diesel Engine

Model

Cummins 6CTA  8.3-C240(turbocharged and charge water cooled)

Displacement

8.3L (2.19 US Gallons)



Power

179kW (240HP)



Rated RPM(Factory setting)

2200rpm



BQ

2000 m(6560 feet)

Drilling Capacity

NQ

1600 m(5248 feet)

HQ

1300 m(4264 feet)



PQ

1000 m(3280 feet)



Rotation Motor

Double Hydraulic Motor -variable and  Reversible Maker: SAUER-DANFOSS



RPM

Two Shifts/ Stepless Change 0-1100 RPM



Ratios

1st 8.776:1 2nd 2.716:1



Head Opener

sidewise sliding way with hydraulic drive

Drill Head

Hydraulic Chuck(PQ)

Hydraulically opened,   Disc Spring Clamping,   Normally C Closed Type Axial Holding Capacity  of 222 400 N

Max. Torque

6400 N·m(4717 lbf·ft)

Hold Diameter

121 mm(4.76 inch)

Max. Lifting capacity of Spindle

220 kN(49456 lbf)

Max. Feeding Power

110 kN(24728 lbf)



Foot Clamp

Clamping Scope

55.5-117.5 mm(2.19-4.63 inch)  through hole Ф154mm(6.06 inch)



Weight

14500 Kg(31973 lb)

Others

Transport Dimensions  (L × W ×H )

5900×2240×2500mm  (232.3×88.1×98.4 inch)

Transport Way

Steel Crawler

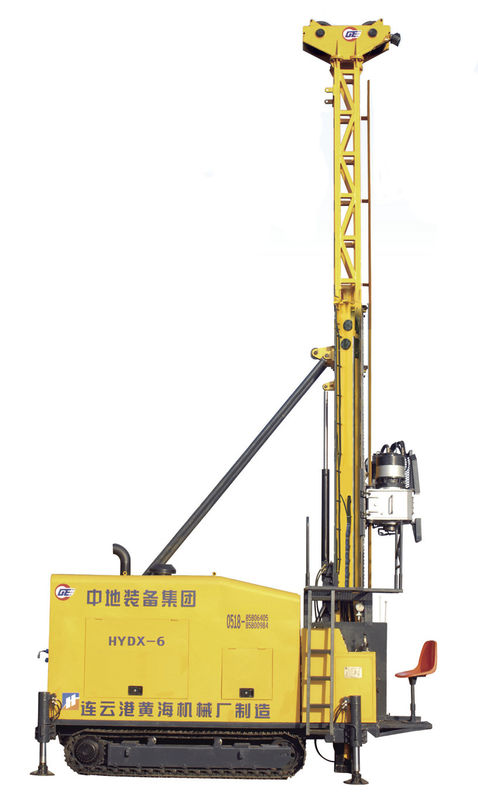

Core Drill Rig 179kw Core Drilling Rig Hydraulic Drill Machine For Coal Mining HYDX-6 0

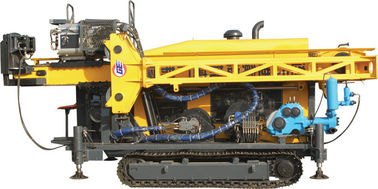

Core Drill Rig 179kw Core Drilling Rig Hydraulic Drill Machine For Coal Mining HYDX-6 1
