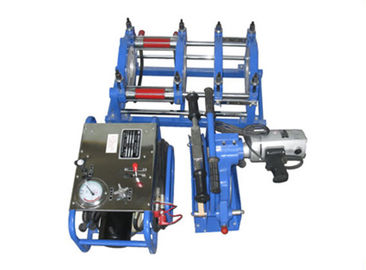

Hot Melt Butt Plastic Pipe Welding Machine BRDH 160/250 Low Power Consumption

Brand Name:	BRDH
Model Number:	160/250
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Hot Melt Butt Welding Machine

Motor Power:

2.45kW/3.95KW

Operating Voltage:

220V/240V 50Hz/60Hz

Electric Plate Temperature:

Max270℃

Optional Parts:

Flange Chuck, Data Logger And Special Fixture

Supply Ability:

Based on Detailed Order

Highlight:

plastic tube welding machine

plastic pipe welding equipment

Product Description

Hot Melt Butt Plastic Pipe Welding Machine BRDH 160/250 Low Power Consumption

Uses and features:

1. Used to connect PE, PP, PVDF pipes in construction sites and trenches; also can make pipe fittings in the workshop.

2. Special design of sensor and temperature controller reliability.

3. Sealing valve, quick joint, reducer, part of valve body adopt imported components.

4. The blade is double-sided and comes with a bundle to ensure the site is used.

5. Hydraulic system electrical box integrated design, reducing the number of parts.

6. Shockproof pressure gauge is more suitable for night work.

Model	BRDH160	BRDH250
Range	63,75,90,110,125, 140,160	110,125,140,160, 180,200,225,250
Electric plate temperature	170~250℃(±7℃) Max270℃	170~250℃(±7℃) Max270℃
Operating voltage	220V/240V 50Hz/60Hz	220V/240V 50Hz/60Hz
Power	2.45kw	3.95kw
Total weight	106kg	136.5kg
Optional parts	Flange chuck, data logger and special fixture

Hot Melt Butt Plastic Pipe Welding Machine BRDH 160/250 Low Power Consumption 0
