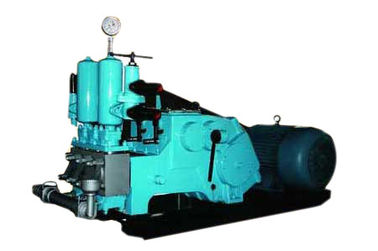

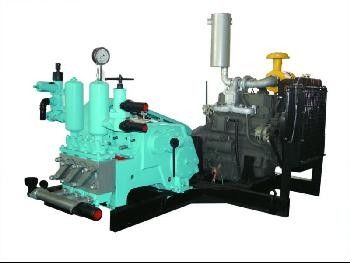

BW-300/12 MUD PUMP 2103X940X1130 45kw Drilling Mud Pumps

BW-300/12 MUD PUMP 2103X940X1130 45kw  Drilling Mud Pumps
BW-300/12 MUD PUMP 2103X940X1130 45kw  Drilling Mud Pumps BW-300/12 MUD PUMP 2103X940X1130 45kw  Drilling Mud Pumps

Large Image :  BW-300/12 MUD PUMP 2103X940X1130 45kw Drilling Mud Pumps

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

BW-300/12 MUD PUMP 2103X940X1130 45kw Drilling Mud Pumps

Description
High Light:

drilling mud pump

,

mud pumps for drilling rigs



BW-300/12 MUD PUMP

BW-300/12 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 3000 meter.BW-300/12 is mainly used to equip with core drilling rig to make less than 3000 meters drilling.

Specifications:

1.horizontal, triplex, single acting
2.four shifts of flow rates&pressures
3. smooth rotation
4.longer service life



 BW-300/12 MUD PUMP 2103X940X1130 45kw  Drilling Mud Pumps 0




MODEL

BW-300/12

TYPE

Horizontal, Triplex, Single Acting Reciprocating pump

STROKE (mm)

110

LINER DIA. (mm)

75

STROKES (min-1)

206 151 112 82

DISPLACEMENT (L/min)

300 220 160 120

PRESSURE (Mpa)

6.0 8.0 10.0 12.0

INPUT POWER (kW)

45

SUCTION PIPE DIA. (mm)

76

DISCHARGE PIPE DIA.(mm)

51

DRILLING HOLE DEPTH

Diamond Core Drilling <3000m

Tungsten Carbide Drill <2000m

DIMENSION (mm)

2103X940X1130

WEIGHT

750KG



BW300/12 pump is a horizontal, triplex, single acting reciprocation piston pump.

BW300/12 pump can also be used as a mud-pump cooperating drilling machines with large caliber no more than 1500m,or be used as a cooperative pump with the percussive rotary drilling.

BW300/12 pump has four shifts of flow rates and four shifts of pressures, which can meet any grouting or drilling better. Comparing to some other pump with same specifications,

 BW300/12 pump  has advantages such as smooth rotation, large-scale variable rates of flow, high output pressures, longer service life of the wearing parts and steady performance, etc.
