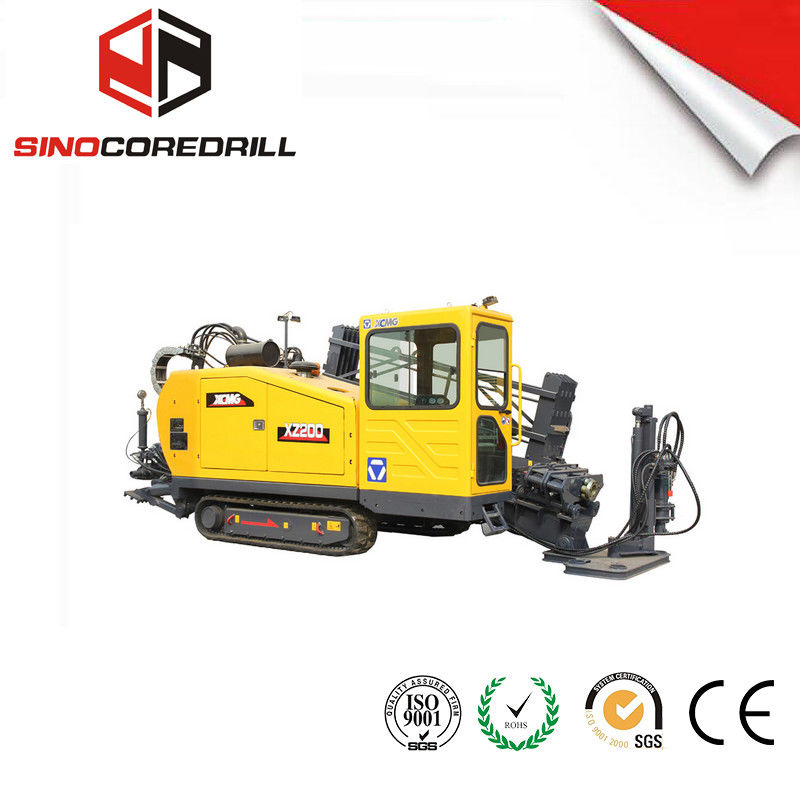

20Tons horizontal drilling drilling rig for sale with Cummins 6BTA5.9-C150 power engine

20Tons horizontal drilling drilling rig for sale with Cummins 6BTA5.9-C150 power engine
20Tons horizontal drilling drilling rig for sale with Cummins 6BTA5.9-C150 power engine

Large Image :  20Tons horizontal drilling drilling rig for sale with Cummins 6BTA5.9-C150 power engine

Product Details:
Place of Origin: China
Certification: CE
Model Number: XZ200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

20Tons horizontal drilling drilling rig for sale with Cummins 6BTA5.9-C150 power engine

Description
Thrust-pullback Force: 200kn Maximum Spindle Torque: 6350 Nm
Spindle Speed: 0-160RPM Carriage Thrust/pullback Travel Speed: 0-26m/min
Model: Cummins 6BTA5.9-C150 Power: 112kw
Drilling Fluid Pressure: 8Mpa Type: Horizontal Directional Drilling Machine For Sale
H.S.CODE: 843041 Drilling Angle: 0-25
High Light:

hdd horizontal directional drilling

,

horizontal directional drilling machine



hdd machine horizontal drilling drilling rig





1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.

2.Rubber tracks have the least impact on roads, lawns and scenic spots.

3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.

4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.

5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.

6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.

7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.



Engine
Model - Cummins 6BTAA5.9-C150
Rated power KW/r/min 112/2200
Push and pull
Maximum force KN 225
Maximum speed m/min 26
Rotation
Torque N · m 6350
Maximum rotation speed r/min 160
Mud pump
Maximum flow L/min 250
Maximum pressure Mpa 8
Drill rod mm*m φ60×3
Lorry crane
Hoisting weight T --
Lifting moment t•m --
Maximum entry angle ° 22
Maximum return diameter mm φ600
Weight T 8.5
Dimension mm 5900×2020×2400
Remark - Optional: automatic anchoring system, cab, air conditioning, mud antifreeze, mud cleaning, Mud throttling
