Product Details:
|
| High Light: | tungsten carbide,tungsten carbide drills |
||
|---|---|---|---|

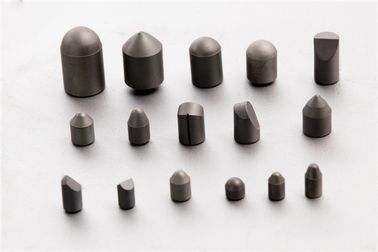

Carbide Cutting Tips
Specifications
tungsten carbide saw tips:
--Good abrasive resistance blank tungsten carbide tips.
--Good heat and corrosion resistance.
Sinocoredrill is engaged in manufacturing,exporting and supplying a wide range of tungsten carbide tools, wear parts and components to suit different industries.
Quality and customer service are the core of our production. We have the capability toproduce parts ranging in different sizes and with a variety of grades available.
We have a team of highly qualified technical personnel with rich experience who provide complete service to the customers.
We could supply virouse tungsten carbide inserts for different purpose like bits, indusries e.t.c
Carbide Button Bits Grade Recommended:
|
Grade |
Equal to ISO Category Number |
Performance |
|
||
|
Density |
Bend Strength |
Hardness |
|
||
|
G/Cm3 |
N/mm2 |
HRA |
uses |
||
|
YG3 |
K01 |
14.9-15.3 |
≥1180 |
≥90.5 |
sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
|
YG3X |
K01 |
15.1-15.4 |
≥1300 |
≥91.5 |
|
|
YG6X |
K10 |
14.8-15.1 |
≥1560 |
≥91.0 |
Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
|
YG6A |
K10 |
14.7-15.1 |
≥1580 |
≥91.0 |
|
|
|
|
|
|
|
|
|
YG6 |
K20 |
14.7-15.1 |
≥1670 |
≥89.5 |
Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
|
YG8 |
K20-K30 |
14.6-14.9 |
≥1840 |
≥89 |
Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
|
YT15 |
P10 |
11.1-11.6 |
≥1180 |
≥91.0 |
Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
|
YT14 |
P20 |
11.2-11.8 |
≥1270 |
≥90.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
|
YT5 |
P30 |
12.5-13.2 |
≥1430 |
≥89.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
|
YW1 |
M10 |
12.7-13.5 |
≥1180 |
≥91.5 |
Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
|
YW2 |
M20 |
12.5-13.2 |
≥1350 |
≥90.5 |
Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
