TDC-80 Top Drive crawler-type coalbed methane multi-function drilling rig

TDC-80 Top Drive crawler-type coalbed methane multi-function drilling rig
TDC-80 Top Drive crawler-type coalbed methane multi-function drilling rig

Large Image :  TDC-80 Top Drive crawler-type coalbed methane multi-function drilling rig

Product Details:
Place of Origin: CHINA
Certification: ISO9001
Model Number: TDC-80
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: Negotiable
Delivery Time: 2 MONTHS
Payment Terms: L/C, T/T

TDC-80 Top Drive crawler-type coalbed methane multi-function drilling rig

TYPE: Top Drive Oil Rig Drilling Capacity: Rescue And Rescue Hole Stroke ,air Hole Stroke ,diamond Core Drilling,CBM And Oil Gas ,Geothermal Stroke
POWER: 220 KW/2200rpm×2sets Max Lifting Force: 800 KN
Max Feeding Force: 200 KN Transport Dimension: 13500×3200×3400 Mm


TDC-80 Top Drive Crawler-Type Coalbed Methane Multi-Function Drilling Rig



TDC-80 crawler-type coalbed methane multi-function drilling rig is based on our company's more than 40 years of drilling machinery research and development, production and manufacturing, practice, according to the characteristics of domestic coalbed methane exploration and exploitation, combined with the advanced experience and concept of foreign coalbed methane exploitation, in the design of the extensive solicitation of the opinions of construction units. The newly developed China's first new coalbed methane multi-purpose drilling rig with independent intellectual property rights, compared with foreign drilling rigs, simple structure, superior performance, good cost performance, is a coalbed methane drilling rig more suitable for China's national conditions. The drilling rig is mainly used in coalbed methane mining, shallow oil drilling, oil well workover, geothermal well construction, and can meet the domestic ultra deep hole core hole survey drilling, can also be used with engineering rescue, mine ventilation, drainage pipeline construction.



TDC-80 crawler coalbed methane multi-purpose drilling rig, using full hydraulic drive, top driving head, telescopic mast, crawler self-walking structure, is a multi-functional coal-bed methane drilling rig. The drilling rig can use air hammer impact drilling, gas reverse circulation drilling, high pressure mud drilling and other methods of construction. It can meet the diversified construction under different geological conditions



Main technical features:

  • Drilling rigs meet a variety of construction technology drilling methods, mainly including the following:

(1)Coalbed methane horizontal lateral well drilling method

(2)Down-The-Hole hammer RC drilling

(3)High pressure mud drilling.

(4)Rotary-drill with reverse circulation



Main Technical Parameters:


Power 220 KW 220 KW/2200rpm×2sets
Drilling capacity φ114.3mm×9.6m 1800 m
φ127mm×9.6m 1200 m
φ140mm×9.6m 800 m
Drill head Torque/rotating speed

Low:0~70 rpm±


Maximum torque of spindle rotation

30000N.m(0~ 70rpm)

15000N.m(0~ 140rpm)

Screwing off torque 43000 N.m
Spindle dia. φ75 mm
Swing angle 0°~80°
Rotating dia. 850 mm
Stroke 12.9 m
Max Lifting force 800 KN
Max Lifting speed 28 m/min
Max Feeding force 200 KN
Max Feeding speed 55 m/min
Mast Max Lifting speed 0~24 m/min
Adjustment angel 0°~90°
Drilling angel 45°~90°
Upper mast stroke 7000 mm
The full length of the upper mast 13.9m
Foot clamp Maximum shackle torque 70000 N.m

Maximum up torque


35000 N.m
Maximum hole diameter of anchor plate   φ600 mm
Crane(optional) Maximum lifting force of single rope empty hub 32 KN
Diameter of rope φ10 mm
Rope capacity 120 m

Steel crawler chassis

Two speed motor + travel reducer

High 0~ 2 Km/h


Low 0~ 1 Km/h

Operation room Oil API standard control room ,Drilling gauge and Wellsite monitoring system

High :2.5 m

Area:20 square meters

Others Working dimensions 9500×3200×19500 mm
Transport dimension 13500×3200×3400 mm
Total Weight 49000 kg


Main components configuration of equipment


Engine Power
Diesel engine 220KW /2200r/min 2sets

1 The diesel engine can run separately or in parallel, and the speed is slow when running alone.

2 Remote electronic throttle controls, diesel parameters are carried out in the operating room.

3 EFI China III vehicle emission standards

Elastic coupling BOWX-6 series 2sets Germany CENTA
Hydraulic Pump 90R130ERR130JRR060 series 6sets Danfoss Corporation
Crawler Width of crawler 600mm 1set
Crawler Motor TM70 series 2sets Doosan Korea Co., LTD
Power Head
Rotary motor MS18 or A6VM series 4sets Pokrane or Rexroth
Gear Box   1sets
Drilling mast
Structure Telescopic mast, cylinder chain structure, cylinder seal adopts German Parker seal
Upper Winch 2ton 1set Hydraulic winch reducer
Logging winch (optional)
Lifting force 1.2 ton 1set Motor from USA Eaton
Hydraulic system
Main control valve



Hydraulic pipe     Italy valiant company
Hydraulic Filter Accuracy 10u   China professional factory
Operation room
Operation room Air conditioning 1 SET China professional factory

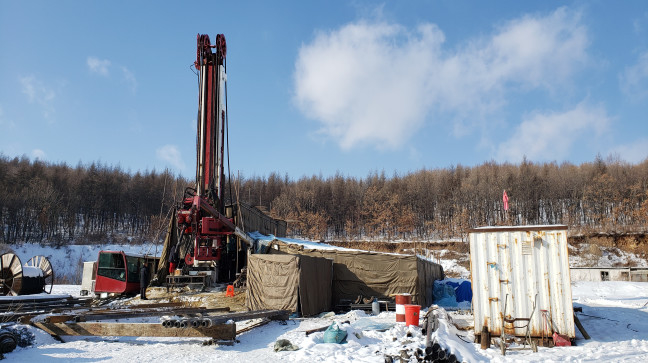

TDC-80 Top Drive crawler-type coalbed methane multi-function drilling rig 0
