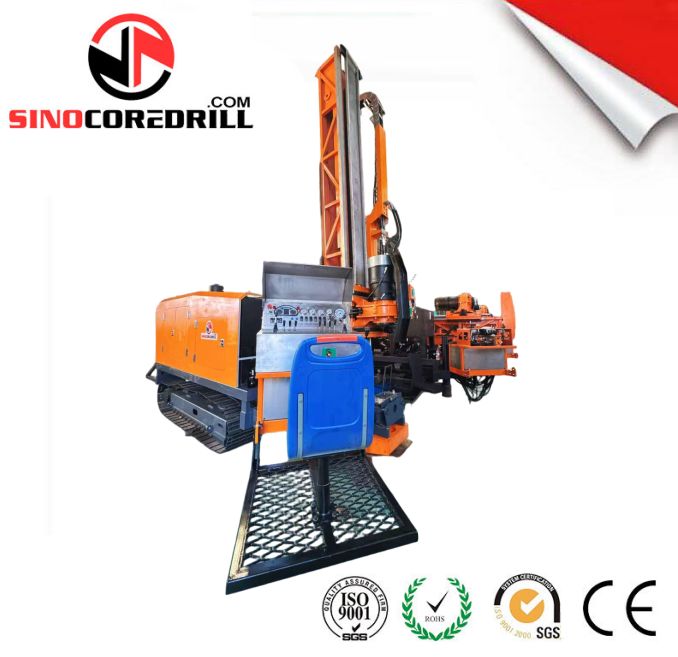

CR15 Full Hydraulic Diamond Core Drill Rig with 2050m Drilling Capacity and 178kW Engine for Mining Projects

Brand Name: SINOCOREDRILL
Model Number: CR15
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard Export Package
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001 ,CE
Type:
Full Hydraulic Surface Core Drill Rig
Model:
CR15
Engine:
DCEC QSB6.7 (EU Stage IIIA) 178kw
Drilling Capacity:
BQ 2050m NQ 1650m HQ 1350m PQ 950m
Transport Dimensions:
5980×2240×2480mm
WEIGHT:
10500Kg
Highlight:

1650m diamond core drilling rig

,

1650m exploration rig

,

sinocoredrill diamond core drilling rig

Product Description
CR15 Surface Core Drilling Rig
1650m Full Hydraulic Diamond Core Drilling Rig for Coal, Gold, Copper, and Iron Mining Projects
Advanced Engineering & Design
The CR15 represents an updated model of the HYDX-6A Full Hydraulic Drilling Rig, developed through international collaboration between engineers from Australia, Germany, Russia, and China. This compact drilling rig incorporates advanced drilling technology and practical functionality, featuring premium components from world-leading manufacturers.
Key Features
  • Compact design optimized for drilling technology requirements
  • Premium hydraulic components from American and European manufacturers
  • Rexroth (Germany) hoist system
  • DEUTZ (Germany) diesel engine
  • Suitable for both slant and vertical drilling operations
  • Compatible with diamond and carbide alloy bit drilling
  • Crawler-mounted for enhanced mobility and operational stability
  • Telescopic mast and hydraulic leveling jacks for easy operation
  • Modern design with comprehensive safety features
Applications
Ideal for geological exploration, metallurgy, coal mining, nuclear industry applications, and hydrological measurement across various mining sectors including coal, gold, copper, and iron.
Technical Specifications
Model CR15 CR20 CR25
Diesel Engine Model DCEC QSB6.7 (EU Stage IIIA) DCEC QSLB8.9 (EU Stage IIIA) DCEC QSZ13-C400-II (EU Stage IIIA)
Engine Displacement 6.7L 8.9L 13L
Power Output 178kW (240HP) 242kW (325HP) 298kW (400HP)
Rated RPM 2000rpm 2100rpm 1900rpm
BQ Drilling Capacity 2050 m 2850 m 3100 m
NQ Drilling Capacity 1650 m 2250 m 2550 m
HQ Drilling Capacity 1350 m 1850 m 2050 m
PQ Drilling Capacity 950 m 1350 m 1650 m
Rotation Motor Rexroth (Germany) Rexroth (Germany) Rexroth (Germany)
RPM Range Stepless Change: 0-1250 RPM Stepless Change: 0-1250 RPM Stepless Change: 0-1250 RPM
Max. Torque 6750 N*m 7550 N*m 8750 N*m
Max. Lifting Capacity 250 kN 320 kN 320 kN
Mast Height 9.5 m 9.5 m 10.5 m
Transport Dimensions 5980×2240×2480mm 6250×2240×2480mm 6950×2260×2550mm
Weight 10.50 ton 13.50 ton 16.50 ton

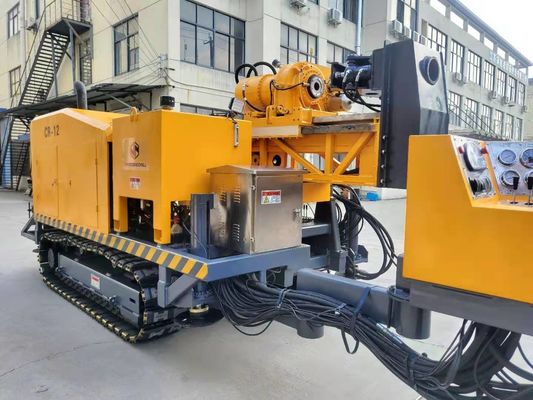

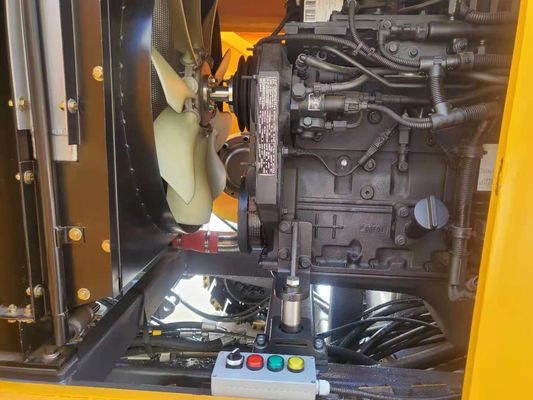

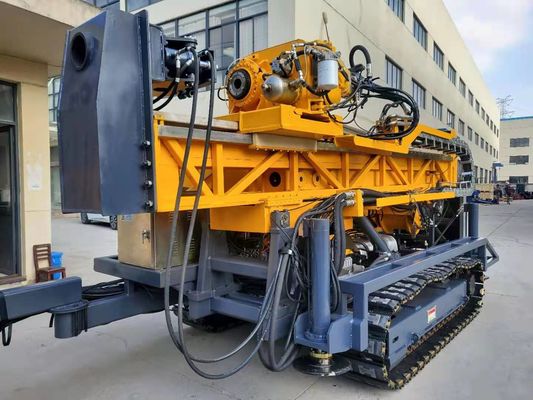

CR15 Surface Core Drilling Rig operational view CR15 Drilling Rig detailed components and controls
